Insulation Fasteners: Types for Foam Board, Concrete, and Steel

Which Insulation Fasteners Suit Foam Board, Concrete, and Steel Assemblies?

The optimal fastener depends on the insulation board type, substrate material, and environmental exposure. For rigid foam board over concrete, a hammer-set drive pin with a large wafer head provides quick mechanical anchoring. For steel studs, a self-drilling screw with a corrosion-resistant coating works best. For various concrete or steel backings, powder-actuated fasteners deliver high speed and pullout resistance. These selections ensure the building envelope meets thermal, vapor, and structural performance targets.

Load requirements vary by wind uplift, insulation weight, and seismic zone. Vibration-prone areas like mechanical rooms may need locking features. Corrosion from humidity or chemicals dictates stainless steel or coated fasteners. Assembly speed also matters—bulk-packed washered screws suit autofeed systems, while individual pins fit hand-set workflows.

How Insulation Fasteners Secure the Building Envelope

Insulation fasteners clamp the board tightly against the substrate, transferring tension and shear loads. The washer distributes compression without crushing the foam, while the shank—whether threaded or smooth—engages the base material. For concrete, expansion anchors or drive pins create friction; for steel, self-tapping threads pull the board flush. This mechanical lock prevents air gaps and maintaining continuous insulation performance.

Modern designs often combine a plastic sleeve with a metal nail to reduce thermal bridging, a critical consideration for LEED or passive house projects. The sleeve thermally isolates the metal from the surface, improving U-value. Fastener spacing and layout follow engineered patterns—typically 12 to 16 inches on center at edges and field—to meet ASTM E2357 for air barrier continuity.

Key Selection Criteria for Insulation Fasteners

Start with the substrate compatibility and insulation thickness. Fastener length must equal board depth plus embedment—usually 1 to 1.5 inches into concrete—and account for any existing membrane. For steel, thread type and point style must match the gauge and strength of the stud or panel.

• Material and coating: Carbon steel with zinc plating for interior, 304 or 316 stainless near coastal or chemical exposure. Neoprene or EPDM washers provide weather seal.
• Pullout and pullover resistance: Test values per ASTM E488 or AC193; design must exceed factored wind loads.
• Corrosion resistance: Salt-spray testing per ASTM B117; choose coating class appropriate for environment.
• Code compliance: ICC-ES evaluation reports ensure acceptance under IBC/IRC; look for ESR listings specific to fasteners.
• Thermal performance: Plastic sleeves or thermal caps minimize heat loss; verify with thermal modeling.

Realistic Project Walk-through: Cold-Storage Retrofit

A 50,000 sq ft distribution center upgraded exterior walls from 2-inch XPS to 4-inch polyiso over metal studs. The engineering team specified self-drilling insulation screws with hex washer heads and EPDM sealing washers, 410 stainless steel for condensation resistance. Edge distance and spacing were laid out per ASCE 7 wind loads for Exposure C. Using autofeed tools, a 4-person crew installed 18,000 fasteners in three weeks. Close coordination with the vapor barrier subcontractor ensured fastener penetrations were taped. Post-installation pull tests confirmed design values, and the blower door test showed a 15% improvement in enclosure tightness.

What to Plan for: Sizing, Torque, Integration, and Logistics

Accurate board thickness measurement avoids overdriving or under-embedding. For screw-type fasteners on steel, torque-control drivers prevent stripping or cracking of insulation. Powder-actuated pins require calibration of power loads for consistent embedment depth. Pre-installation trials on the actual substrate validate tool settings.

Logistically, bulk packaging in collated strips for automatic feed reduces labor; hot-dipped galvanized boxes avoid corrosion in staging. Lead times for specialty coatings or long lengths can extend 4-6 weeks, so align orders with erection schedules. On-site, integrate fastener delivery with insulation staging to minimize handling. Training crews on proper stand-off distance and washer seating prevents callbacks.

Discuss Your Project Requirements

Every building envelope has unique thermal, structural, and durability demands. Whether you are specifying fasteners for a high-rise curtain wall, a cold storage panel system, or a concrete tilt-up facade, consult with our engineering team to match the right anchor type, head style, and coating. We can provide pullout data, corrosion reports, and installation guidance to reduce field uncertainty and ensure compliance. Reach out to begin a technical review of your plans.

Fastener Categories by Substrate and Fastening Method

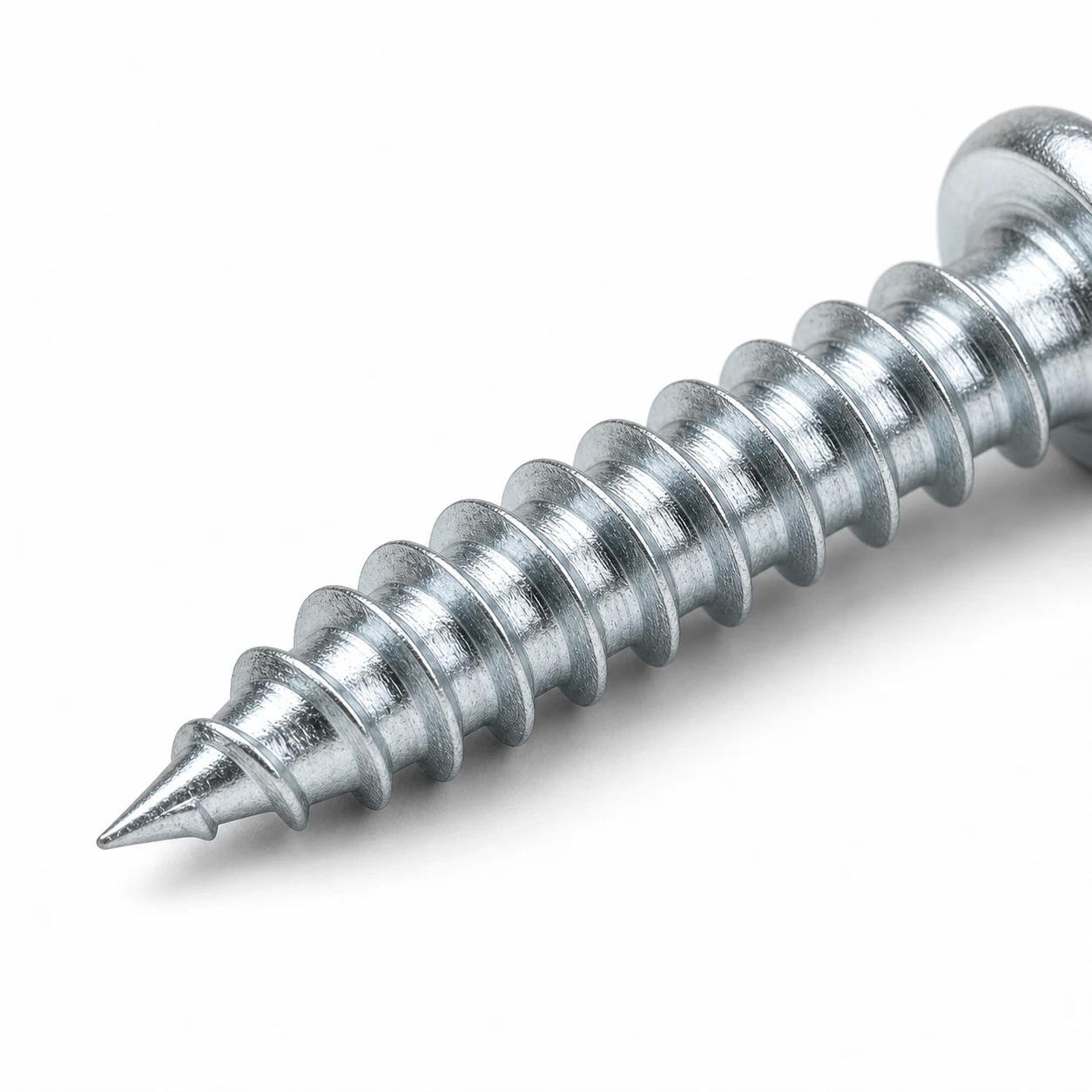

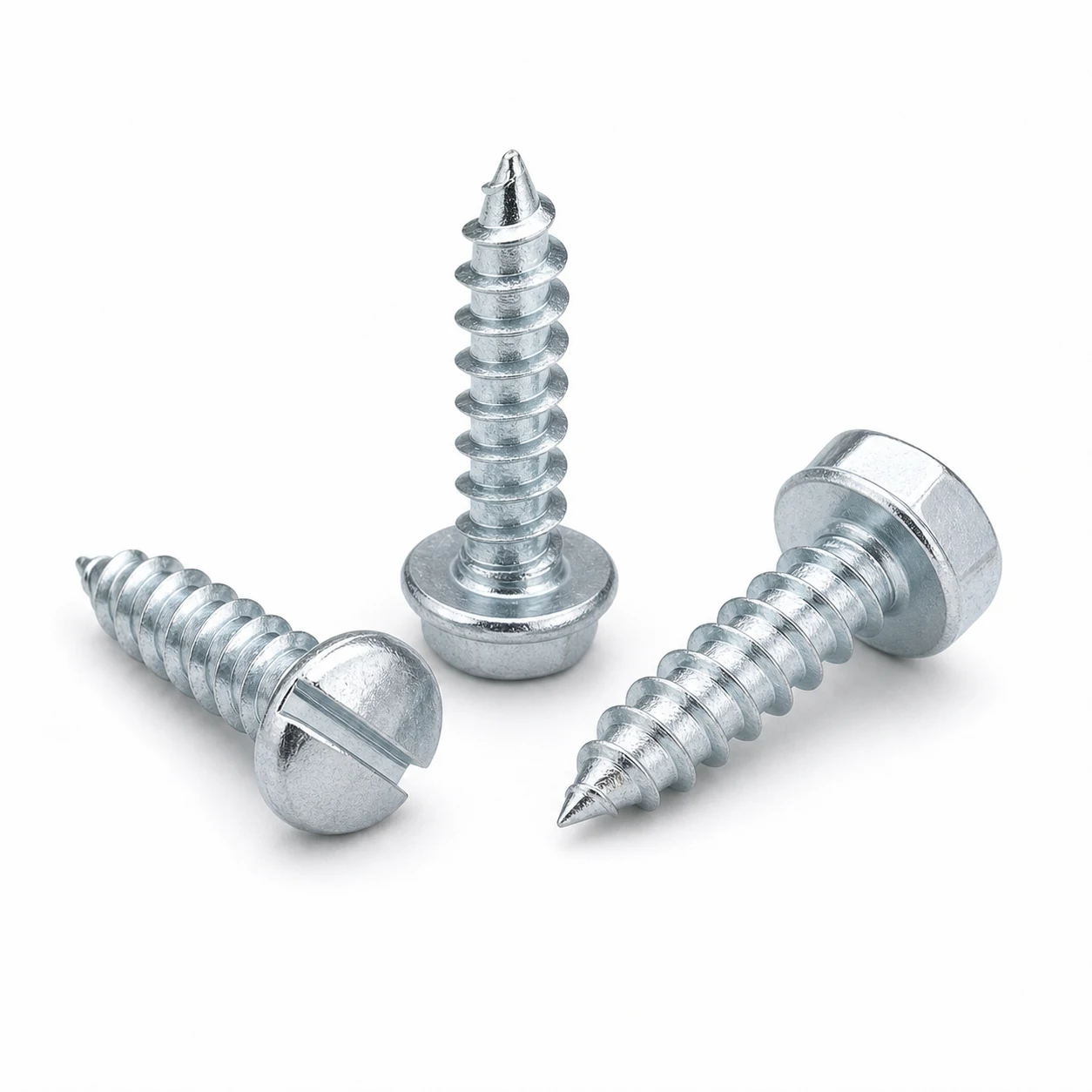

Insulation fasteners organize into groups based on the substrate and the method of mechanical engagement. For rigid foam board applied to concrete or masonry, plastic or steel drive pins with large impaling washers are typical. These anchors expand as a nail or screw is driven into a pre-inserted sleeve, creating a friction fit within the concrete. For steel deck or stud applications, Self-Tapping Screws — DIN 7976 / ISO 1481 are standard for these applications; their drill-point tip cuts through metal and draws the insulation board tight without stripping the thread. Polypropylene or nylon sleeves with zinc-plated steel nails are common for lighter-duty building wraps, while heavy-gauge carbon steel screws with a corrosion-resistant coating handle thicker, composite panels. When fastening to wood framing, coarse-thread screws with an integrated washer provide pullout resistance comparable to lag screws, often conforming to envelope sealing requirements such as ASTM E2112.

The head design influences load distribution: a large-diameter plastic washer (commonly 25 mm to 50 mm) spreads clamping force, preventing the soft insulation from pulling over the head. Washers may be flat or dished to suit the board surface. For high-traffic areas or where insulation boards are exposed, domed metal caps add puncture resistance. Manufacturers also offer pre-assembled units combining an anchor, screw, and washer for one-step installation, reducing labor variability on large facades.

Key Facts at a Glance

• Fasteners for foam board over concrete typically use expansion anchors with glass-fiber-reinforced nylon shanks to minimize thermal bridges.
• Self-tapping fasteners for steel must have a hardened carbon-steel core for reliable penetration into gauge metal without pre-drilling.
• Washer diameter is a critical variable: an undersized washer can lead to creep and insulation detachment over time under cyclic temperature loads. Use of Fender Washers — DIN 9021 enlarges the bearing surface on the insulation, reducing point pressure.
• Corrosion protection classes (e.g., ASTM B117 salt spray ratings) guide coating selection for outdoor or humid interiors.
• Minimum embedment depths into concrete are governed by anchor manufacturer data and regional structural codes (e.g., ACI 318).

How to Compare Insulation Fasteners

Buyers and engineers evaluate insulation fasteners using at least these attributes, but exact values must be confirmed with the supplier for each project:

• Anchor material: nylon 6/6, polypropylene, zinc alloy, or stainless steel; affects thermal conductivity and aging.
• Nail/screw grade: carbon steel (e.g., G5-G8 per ASTM A449), stainless steel (A2/A4), or coated steel (e.g., CR+3 or hot-dip galvanized).
• Thread type: coarse or fine pitch for wood; self-tapping threads for steel; expansion zone for concrete anchors.
• Washer diameter and style: flat, dished, or domed; typically 40–70 mm for commercial facades.
• Length: must exceed total insulation thickness plus embedment depth; available from 25 mm to over 300 mm.
• Pullout and shear rating: per EAD 330195-00 or manufacturer’s testing; critical for wind uplift resistance.
• Minimum order quantity (MOQ): often starts at 10,000 pieces for standard sizes; custom lengths or head markings may have higher thresholds.
• Lead time: stock items ship within 2-3 weeks; special coatings or lengths add 4-6 weeks.

Installation Considerations for Long-Term Performance

Proper installation validates the specified pullout values. For concrete, the drilled hole diameter must match the anchor manufacturer’s tolerance exactly; oversized holes reduce expansion and can cause pullout failures. In steel deck applications, the fastener must be driven perpendicular to the surface; an angle greater than 5 degrees can result in incomplete thread engagement. Using an auto-feed system with depth-sensitive nosepieces ensures consistent washer compression without crushing the insulation board. Many project specifications now require testing of installed fasteners per ASTM C1513, which involves on-site pullout tests every 5000 ft² (465 m²) of insulated area.

For overhead or soffit installations, the fastener head must be capable of supporting the insulation board’s weight during adhesive cure time, if any. Pre-drilling templates and torque-limiting screw guns help avoid over-driving. When anchors are installed in hollow-core concrete, a secondary expansion mechanism may be needed to prevent spinning during installation. Quality assurance programs like FM Global’s have specific criteria for insulation fastening systems, and choosing a fastener with FM Approved ratings can streamline project approvals.

Consolidated Specifications at a Glance

The table below condenses the key performance and selection factors discussed in this article. Use it as a quick reference when comparing options from different suppliers.

When project specifications demand custom lengths, special head markings, or unique washer colors, early engagement with the manufacturer avoids timeline conflicts. Send a sketch or performance requirements to begin a technical review, and we will propose a fastening system that meets your thermal, structural, and installation goals.
