Application guide for Torx Recessed Countersunk Screw to GB/T 2673 / ISO 14587. The core duty of the type is threaded assemblies where the head drive and seating style matter. The typical industries, the how-to-specify checklist, assembly practice and the exclusion cases are set out below. Stocked across roughly M3 to M24, they cover general to heavy-duty work.

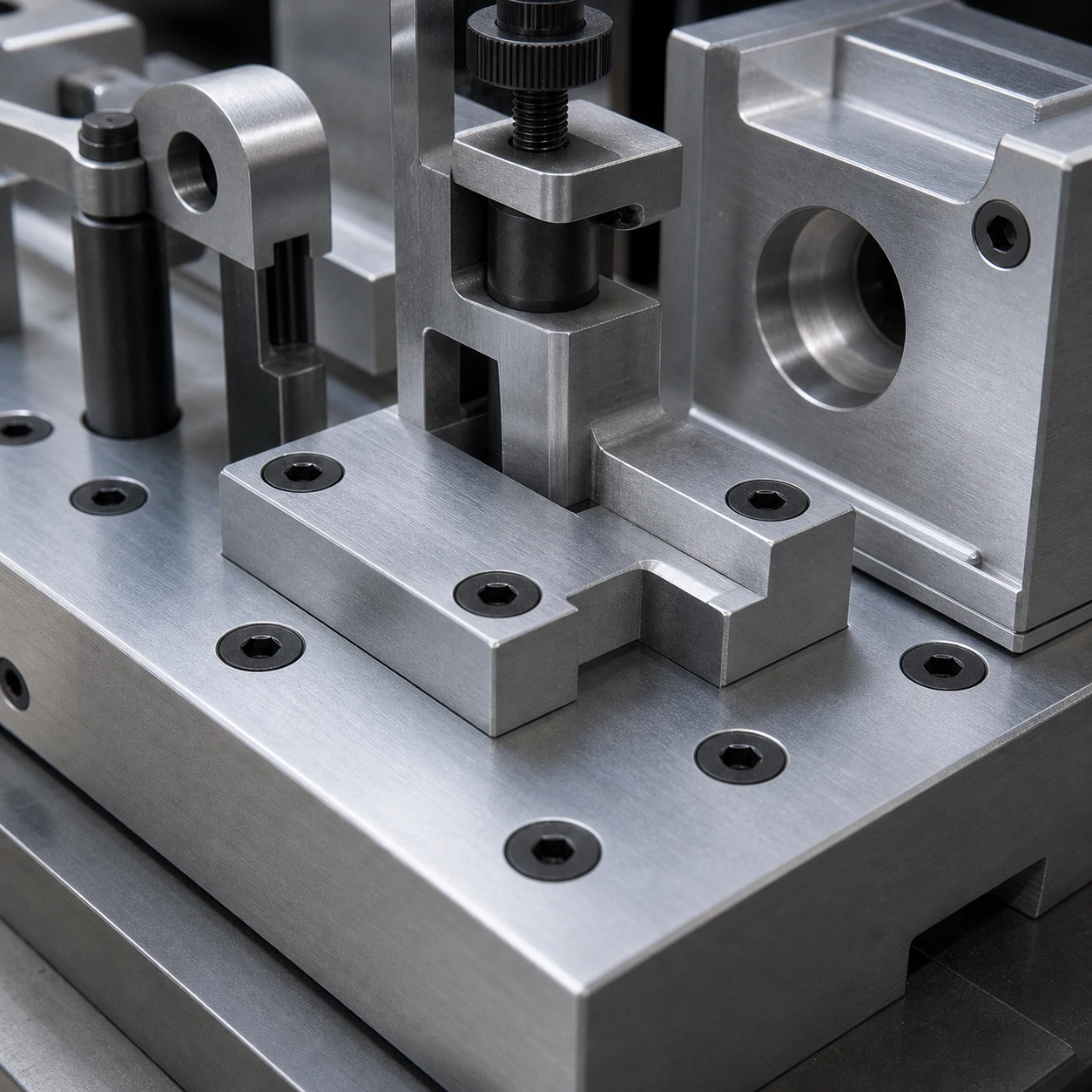

Typical Applications for Torx Recessed Countersunk Screw — GB/T 2673 / ISO 14587 (Series 024)
The most common settings where these are specified:
- Fabrication & metalwork: bench and on-site assembly of steel frames, enclosures and weldments.
- Electronics & enclosures: mounting PCBs, panels and lids where the drive style and head height matter.
- Appliances & consumer goods: high-volume assembly with power tools and consistent seating.
- Machine guarding & panels: removable access covers that are opened for service.
- General machine building: fastening covers, brackets, motors and sub-assemblies on production equipment.
How to Specify Torx Recessed Countersunk Screw — GB/T 2673 / ISO 14587 (Series 024) for Your Application
- Size: Match the nominal size to the mating thread or hole. This product spans M3–M24; check the full table below for the exact dimensions of each size.
- Drive & head: Pick the drive (socket, cross, slot) and head style for the tool access and seating surface; a recessed drive resists cam-out under power tools.
- Environment: For damp, coastal or chemical exposure prefer A4/316 stainless or a suitable coating; indoors, plated steel or A2 is usually sufficient.
- Standard: This product is supplied to GB/T 2673 / ISO 14587. Quoting the standard on your order guarantees interchangeable dimensions between suppliers.
Installation & Assembly Practice
- Match the driver exactly to the recess (PH ≠ PZ; hex key sizes per ISO 2936) and keep the tool axial — side load is the main cause of stripped drives.
- In tapped holes, engage a thread length of at least 1× the nominal diameter in steel, 2× in aluminum.
- Set power tools to a torque that seats the head without embedding it into the mating surface.
Common Selection Mistakes with Torx Recessed Countersunk Screw — GB/T 2673 / ISO 14587 (Series 024)
- Under-sizing the drive for the installation torque — a small recess at high torque strips before the screw is seated.
- Using a countersunk head in thin sheet where the countersink removes most of the load-bearing material.
- Specifying stainless in high-strength duty: A2-70 is roughly class 7 steel, not a 10.9 substitute.
Where Torx Recessed Countersunk Screw — GB/T 2673 / ISO 14587 (Series 024) Are Not the Right Choice
Not for high-preload structural joints (use a property-class bolt and nut), and not in thin sheet where a self-drilling or self-tapping type suits better.
