What Are Taper Pins Used For?

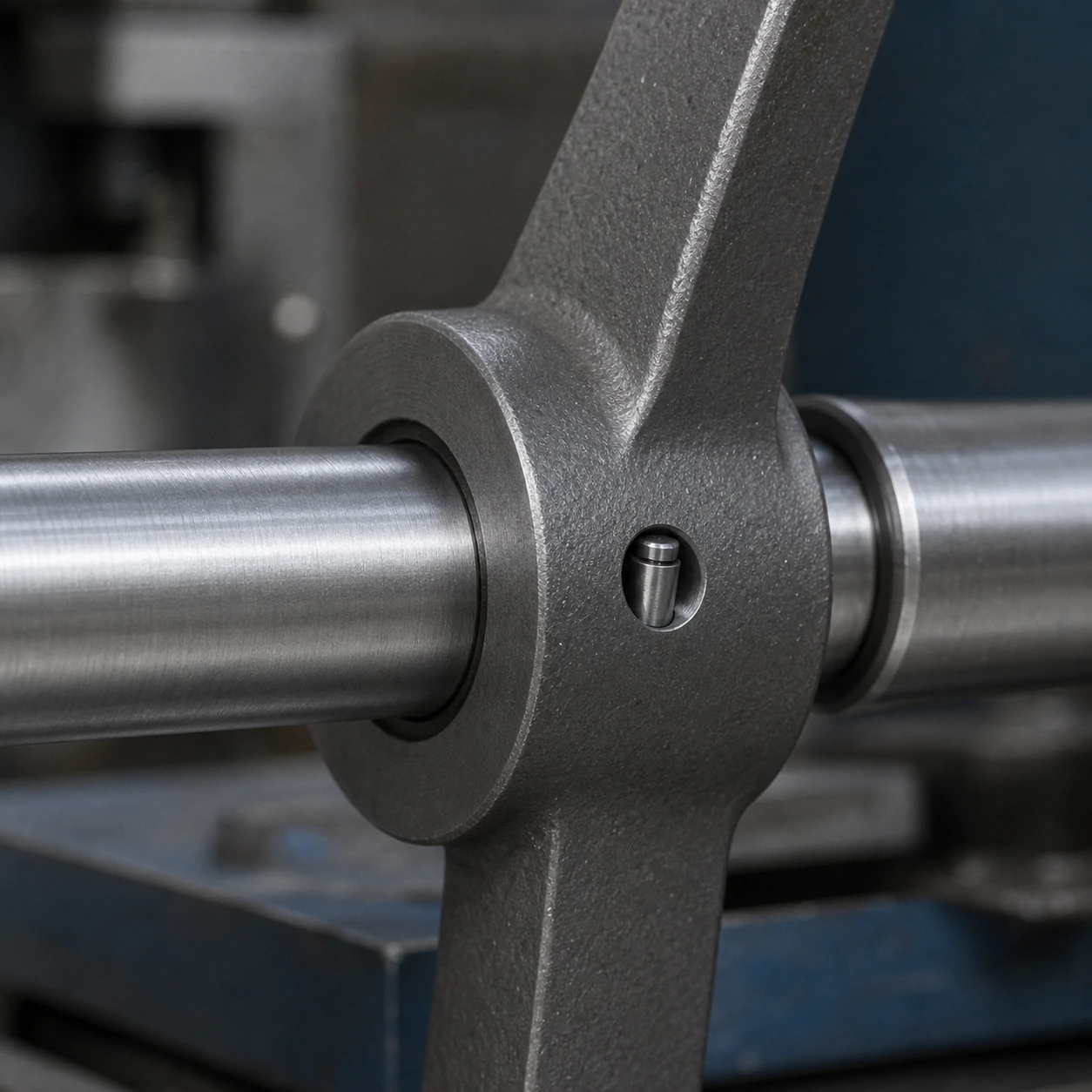

What Are Taper Pins Used For? application image

Application guide for Taper Pins to ISO 2339 / DIN 1. The core duty of the type is precise location and light shear duty between two parts. The typical industries, the how-to-specify checklist, assembly practice and the exclusion cases are set out below. Stocked across roughly M0.6 to M50, they cover general to heavy-duty work.

Typical Applications for Taper Pins

The most common settings where these are specified:

  • General machine building: fastening covers, brackets, motors and sub-assemblies on production equipment.
  • Maintenance & repair (MRO): a stocked size for servicing existing plant where the original fastener spec must be matched.
  • Fabrication & metalwork: bench and on-site assembly of steel frames, enclosures and weldments.
  • Jigs & fixtures: precise location of tooling plates and locating features.
  • Linkages & hinges: pivot points carrying light shear.

How to Specify Taper Pins for Your Application

  • Size: Match the nominal size to the mating thread or hole. This product spans M0.6–M50; check the full table below for the exact dimensions of each size.
  • Material: Choose the material and finish for the service environment — plated steel for general use, stainless for corrosion resistance.
  • Environment: For damp, coastal or chemical exposure prefer A4/316 stainless or a suitable coating; indoors, plated steel or A2 is usually sufficient.
  • Standard: This product is supplied to ISO 2339 / DIN 1. Quoting the standard on your order guarantees interchangeable dimensions between suppliers.

Installation & Assembly Practice

  • Ream the hole to the specified fit class; a dowel pressed into a drilled-only hole will not locate accurately.
  • Press pins in with steady force rather than hammer blows where possible, and chamfer the hole entry.

Common Selection Mistakes with Taper Pins

  • Using a dowel pin as a load-carrying shear bolt — dowels locate, they are not sized for sustained shear.
  • Ignoring the fit class: a locational fit and an interference fit need different hole tolerances.

Where Taper Pins Are Not the Right Choice

Not for carrying significant tensile or repeated heavy shear loads — use a bolt or a keyed joint for that.

Technical Drawing

Customize the parameters below — every spec field is editable, and the drawing redraws to match the values you choose. Changing the size will snap the other fields to that size's standard values; you can then override any individual value.

Sends the selected values to the quote form below.

Request a Quote

Set the size and options in the drawing above, then send the exact configuration straight to this form.

Request a Quotation

Specification
Business Information

Dimensions & Specifications (ISO 2339 / DIN 1)

Small-end diameter (mm)TaperCommon length range (mm)MaterialReference standardNotes
0.61:504~16Carbon steel / stainlessISO 2339 / DIN 1 (type A)Large end = small end + length/50
0.81:505~20Carbon steel / stainlessISO 2339 / DIN 1 (type A)Large end = small end + length/50
1.01:506~25Carbon steel / stainlessISO 2339 / DIN 1 (type A)Large end = small end + length/50
1.21:506~25Carbon steel / stainlessISO 2339 / DIN 1 (type A)Large end = small end + length/50
1.51:508~32Carbon steel / stainlessISO 2339 / DIN 1 (type A)Large end = small end + length/50
2.01:5010~45Carbon steel / stainlessISO 2339 / DIN 1 (type A)Large end = small end + length/50
2.51:5012~50Carbon steel / stainlessISO 2339 / DIN 1 (type A)Large end = small end + length/50
3.01:5014~55Carbon steel / stainlessISO 2339 / DIN 1 (type A)Large end = small end + length/50
4.01:5016~70Carbon steel / stainlessISO 2339 / DIN 1 (type A)Large end = small end + length/50
5.01:5018~90Carbon steel / stainlessISO 2339 / DIN 1 (type A)Large end = small end + length/50
6.01:5022~110Carbon steel / stainlessISO 2339 / DIN 1 (type A)Large end = small end + length/50
8.01:5028~140Carbon steel / stainlessISO 2339 / DIN 1 (type A)Large end = small end + length/50
10.01:5035~180Carbon steel / stainlessISO 2339 / DIN 1 (type A)Large end = small end + length/50
12.01:5045~200Carbon steel / stainlessISO 2339 / DIN 1 (type A)Large end = small end + length/50
16.01:5055~200Carbon steel / stainlessISO 2339 / DIN 1 (type A)Large end = small end + length/50
20.01:5065~200Carbon steel / stainlessISO 2339 / DIN 1 (type A)Large end = small end + length/50
25.01:5080~200Carbon steel / stainlessISO 2339 / DIN 1 (type A)Large end = small end + length/50
30.01:50100~200Carbon steel / stainlessISO 2339 / DIN 1 (type A)Large end = small end + length/50
40.01:50120~200Carbon steel / stainlessISO 2339 / DIN 1 (type A)Large end = small end + length/50
50.01:50160~200Carbon steel / stainlessISO 2339 / DIN 1 (type A)Large end = small end + length/50

Frequently Asked Questions

Are Taper Pins made to a recognized standard?

Yes — they are manufactured to ISO 2339 / DIN 1, so dimensions are interchangeable between suppliers when you quote the standard on your order.

What are Taper Pins used for?

Precise location and light shear duty between two parts. They are supplied to ISO 2339 / DIN 1.

Which industries use Taper Pins?

They are commonly specified in general machine building, maintenance & repair (mro) and fabrication & metalwork, among other sectors.

How do I choose the right size of Taper Pins?

Match the nominal size to the mating thread or hole. This product is available from M0.6 to M50; the full dimension table on this page lists each size.

Can I get a quote for Taper Pins in the size and material I need?

Yes. Use the technical drawing and quote form on this page to set the size and options, then send the exact configuration to our team for pricing and lead time.
