Blind (Pop) Rivets to ISO 15977 / DIN 7337. Full dimensional table, materials, finishes and quotation. 15 sizes listed.
Technical Drawing
Customize the parameters below — every spec field is editable, and the drawing redraws to match the values you choose. Changing the size will snap the other fields to that size's standard values; you can then override any individual value.
Sends the selected values to the quote form below.
Request a Quotation for Blind (Pop) Rivets
Tell us the size, material, finish and quantity you need for Blind (Pop) Rivets (ISO 15977 / DIN 7337) and our team will respond within one business day. Click "Request this configuration" on the drawing above to send the parameters you just chose straight into this form.
Dimensions & Specifications (ISO 15977 / DIN 7337)
Every row below is a starting point for the customizer above — pick any size and the drawing will redraw to that row.
Nominal diameter (mm)
Grip range (mm)
Cap diameter dk (mm)
Free length (mm)
Body / mandrel material
Reference standard
Notes
2.4
0.5~3.0
5.0
7.0
Aluminum / aluminum
ISO 15977/15978
Use drill of diameter +0.1 to 0.2 mm
2.4
0.5~3.0
5.0
7.0
Aluminum / steel
ISO 15977/15978
Use drill of diameter +0.1 to 0.2 mm
3.0
0.5~4.0
6.0
8.0
Aluminum / aluminum
ISO 15977/15978
Use drill of diameter +0.1 to 0.2 mm
3.0
0.5~4.0
6.0
8.0
Aluminum / steel
ISO 15977/15978
Use drill of diameter +0.1 to 0.2 mm
3.2
0.5~6.0
6.4
10.0
Aluminum / aluminum
ISO 15977/15978
Use drill of diameter +0.1 to 0.2 mm
3.2
0.5~6.0
6.4
10.0
Stainless / stainless
ISO 15977/15978
Use drill of diameter +0.1 to 0.2 mm
4.0
0.5~6.0
8.0
12.0
Aluminum / aluminum
ISO 15977/15978
Use drill of diameter +0.1 to 0.2 mm
4.0
0.5~6.0
8.0
12.0
Aluminum / steel
ISO 15977/15978
Use drill of diameter +0.1 to 0.2 mm
4.0
0.5~6.0
8.0
12.0
Stainless / stainless
ISO 15977/15978
Use drill of diameter +0.1 to 0.2 mm
4.8
0.5~8.0
9.5
14.0
Aluminum / aluminum
ISO 15977/15978
Use drill of diameter +0.1 to 0.2 mm
4.8
0.5~8.0
9.5
14.0
Aluminum / steel
ISO 15977/15978
Use drill of diameter +0.1 to 0.2 mm
4.8
0.5~8.0
9.5
14.0
Stainless / stainless
ISO 15977/15978
Use drill of diameter +0.1 to 0.2 mm
5.0
1.0~10.0
10.0
16.0
Aluminum / aluminum
ISO 15977/15978
Use drill of diameter +0.1 to 0.2 mm
6.0
1.5~12.0
12.0
18.0
Aluminum / aluminum
ISO 15977/15978
Use drill of diameter +0.1 to 0.2 mm
6.0
1.5~12.0
12.0
18.0
Aluminum / steel
ISO 15977/15978
Use drill of diameter +0.1 to 0.2 mm
Manufactured to ISO 15977 / DIN 7337, Blind (Pop) Rivets are rivets supplied by engineeringhardware.com. The dimensional data, materials and selection notes are summarized here.

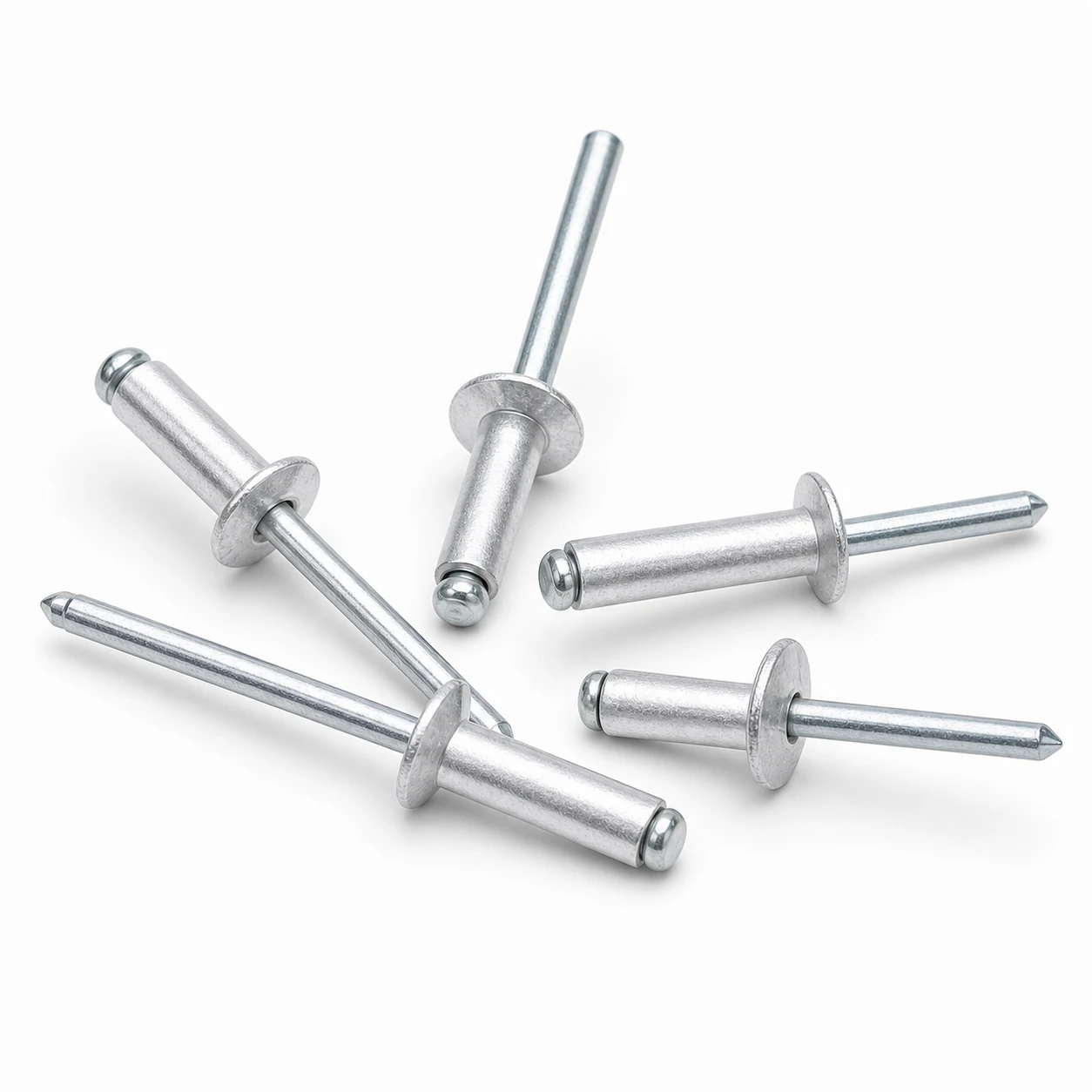

What Are Blind (Pop) Rivets?
Blind (Pop) Rivets are rivets defined by ISO 15977 / DIN 7337. They are selected by thread size and the dimensional characteristics shown below, and are available in a range of materials and finishes to suit the application and environment.
Materials & Finishes
Common materials include carbon steel (typically zinc plated or hot-dip galvanized), alloy steel in property classes 8.8, 10.9 and 12.9, and stainless steel A2 (304) or A4 (316) for corrosion resistance. Specify the material, property class and surface finish appropriate to your load and environment.
Blind (Pop) Rivets are stocked and supplied to order. Pricing starts from approximately US$0.020 per piece for standard sizes in carbon steel; final pricing depends on size, material, finish and order quantity (MOQ applies). Submit your exact configuration with the quote form above.
Frequently Asked Questions
Which standard governs Blind (Pop) Rivets, and how are they driven?
Blind (Pop) Rivets are manufactured to ISO 15977 / DIN 7337 and use the standard drive for this product family. The dimensional values on this page follow that standard.
Which sizes of Blind (Pop) Rivets does engineeringhardware.com supply?
The table on this page lists 15 sizes for Blind (Pop) Rivets, ranging from 2.4 to 6.0. Sizes outside the table can be quoted on request.
In which materials are Blind (Pop) Rivets supplied?
Blind (Pop) Rivets are supplied in aluminum, steel and stainless, with finishes including zinc plating, hot-dip galvanizing and black oxide. Choose material and finish to suit the load and the service environment for Blind (Pop) Rivets.
How do I request a quotation?
Use the parametric drawing on this page to set the exact configuration (size, material, finish) and click "Request this configuration" — a specialist from engineeringhardware.com will respond within one business day.
