8 catalogued sizes. Pick any row and the technical drawing redraws to it.
Rod End Bearing are catalogued in bore 5-25 mm, with pitch 0.8-3 mm, long 40-160 mm, wide 8-32 mm. 8 sizes are held in the table below, and the technical drawing redraws to whichever row you select.
Bore
5-25 mm
Pitch
0.8-3 mm
Long
40-160 mm
Catalogued sizes
8
Dimensions are nominal values from the governing standard. Confirm the tolerance class for your application before ordering.
Customize the parameters below — every spec field is editable, and the drawing redraws to match the values you choose. Changing the size will snap the other fields to that size's standard values; you can then override any individual value.
Dimensioned line drawing of 5 Rod End Bearing — ISO / DIN (Series 106). Side view and top view, drawn to the dimensions in the table below and redrawn for any size selected.
Thread size
M5
Pitch (mm)
0.8
Total length (mm)
40
Hex width (mm)
8
Static load Cor (kN)
2.2
Opens a short step to confirm the exact specification before you enter contact details.
Request a Quotation for Rod End Bearing (Series 106)
Click “Request this configuration” under the drawing to confirm the exact specification, then add your contact details. You can also send the request without a specification — but only an accurate selection gets an accurate quote.
Dimensions & Specifications (ISO / DIN)
Every row below is a starting point for the customizer above — pick any size and the drawing will redraw to that row.
Bore d (mm)
Thread size
Pitch (mm)
Total length (mm)
Hex width (mm)
Static load Cor (kN)
Reference standard
5
M5
0.8
40
8
2.2
DIN ISO 12240 / GB/T 9163
6
M6
1.0
46
10
3.0
DIN ISO 12240 / GB/T 9163
8
M8
1.25
57
12
5.0
DIN ISO 12240 / GB/T 9163
10
M10
1.5
71
14
8.0
DIN ISO 12240 / GB/T 9163
12
M12
1.75
84
17
12.0
DIN ISO 12240 / GB/T 9163
16
M16
2.0
105
22
21.0
DIN ISO 12240 / GB/T 9163
20
M20
2.5
131
27
33.0
DIN ISO 12240 / GB/T 9163
25
M24
3.0
160
32
52.0
DIN ISO 12240 / GB/T 9163
Rod End Bearing — ISO / DIN (Series 106) conform to ISO / DIN. As bearings & bushings, they are specified by the dimensions in the table below; this page also covers materials, finishes and typical uses.
What Are Rod End Bearing — ISO / DIN (Series 106)?
Rod End Bearing — ISO / DIN (Series 106) are bearings & bushings defined by ISO / DIN. They are selected by bore diameter and the dimensional characteristics shown below, and are available in a range of materials and finishes to suit the application and environment.
CAD Source Reference
This page is generated from an original native CAD part model (SolidWorks .SLDPRT) of the rod end bearing — iso / din (series 106) family maintained by our engineering team, covering 3 recorded size configurations. The technical drawing shown above is rebuilt parametrically from the dimensional table, so it always reflects the exact size and configuration you select. Native CAD files (STEP / SLDPRT) can be supplied with your quotation on request.
Materials & Finishes
Rolling-element bearings are supplied in through-hardened bearing steel (100Cr6 / SAE 52100) as standard, with stainless (AISI 440C) and ceramic hybrid variants for corrosive or high-speed service. The specification that matters is the tolerance class, the internal clearance and the cage and seal type — not a fastener property class.
Specification Guides
Each size, material and standard of Rod End Bearing — ISO / DIN (Series 106) has its own reference page with the figures for that one configuration.
Goes With
Hardware commonly specified alongside Rod End Bearing — ISO / DIN (Series 106).
Pricing
Rod End Bearing — ISO / DIN (Series 106) are supplied to order. Pricing starts from approximately US$1.50 per piece for standard bore sizes in bearing steel, open or sealed; final pricing depends on size, material, finish and order quantity (MOQ applies). Submit your exact configuration with the quote form above.
Custom manufacturing · Made to drawing
Need a rod end bearing outside the standard range?
A non-standard bearing & bushing is quoted from the drawing; where one already exists in the catalog, the special is usually a variation on its tooling.
Minimum order from 2,000 pieces; samples within 7 days of drawing approval.
This part is cold-formed, threaded, heat-treated and finished in-house. The stages below are where its class and finish are actually decided.
01
Cold heading
Wire rod is drawn to size and cold-formed into blanks. Forming rather than cutting keeps the grain flow continuous around the head, which is where a bolt is most likely to fail.
Head dimensions and under-head radius checked at set-up and per shift.
02
Thread rolling
Threads are rolled between hardened dies rather than cut. Rolled threads are stronger in fatigue than cut threads and hold pitch and flank angle far more consistently across a batch.
Go / no-go ring gauges to ISO 965 tolerance class 6g.
03
Heat treatment
Quench-and-temper brings carbon and alloy steel to the property class ordered — 8.8, 10.9 or 12.9 — with the furnace charge tracked so a finished lot can be traced back to it.
Core hardness and tensile tested per lot to ISO 898-1.
04
Surface treatment
Zinc, zinc-nickel, hot-dip galvanizing, black oxide, phosphate and Dacromet, selected against the service environment rather than against the price list.
Coating thickness and neutral salt spray hours to ISO 9227.

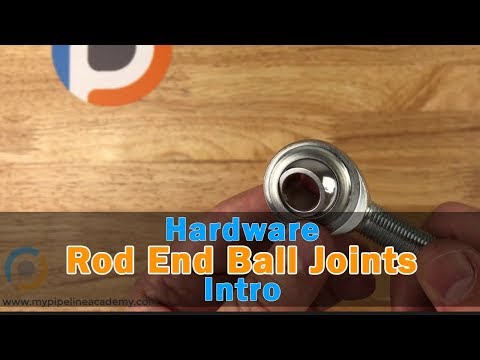

Third-party video, selected automatically for this topic. It is not produced by Engineering Hardware and is not a specification source — use the tables on this page for dimensional data.
Frequently Asked Questions
Which standard governs Rod End Bearing — ISO / DIN (Series 106)?
Rod End Bearing — ISO / DIN (Series 106) are manufactured to ISO / DIN. The dimensional values on this page follow that standard.
What sizes are available for Rod End Bearing — ISO / DIN (Series 106)?
The table on this page lists 8 sizes for Rod End Bearing — ISO / DIN (Series 106), ranging from 5 to 25. Sizes outside the table can be quoted on request.
In which materials are Rod End Bearing — ISO / DIN (Series 106) supplied?
Rod End Bearing — ISO / DIN (Series 106) are supplied in through-hardened bearing steel (100Cr6 / SAE 52100), with stainless and hybrid ceramic variants available, with finishes including zinc plating, hot-dip galvanizing and black oxide. Choose material and finish to suit the load and the service environment for Rod End Bearing — ISO / DIN (Series 106).
How do I request a quotation?
Use the parametric drawing on this page to set the exact configuration (size, material, finish) and click "Request this configuration" — a specialist from Engineering Hardware will respond within one business day.
