9 catalogued sizes. Pick any row and the technical drawing redraws to it.
Wire Rope Thimble are catalogued in dia 4-24 mm, with long 18-86 mm, long 28-128 mm. 9 sizes are held in the table below, and the technical drawing redraws to whichever row you select.
Dia
4-24 mm
Long
18-86 mm
Long
28-128 mm
Catalogued sizes
9
Dimensions are nominal values from the governing standard. Confirm the tolerance class for your application before ordering.
Customize the parameters below — every spec field is editable, and the drawing redraws to match the values you choose. Changing the size will snap the other fields to that size's standard values; you can then override any individual value.
Dimensioned line drawing of 4 Wire Rope Thimble — ISO / DIN (Series 155). Side view and top view, drawn to the dimensions in the table below and redrawn for any size selected.
Inside length (mm)
18
Outside length (mm)
28
Material
Galvanized steel
Opens a short step to confirm the exact specification before you enter contact details.
Request a Quotation for Wire Rope Thimble (Series 155)
Click “Request this configuration” under the drawing to confirm the exact specification, then add your contact details. You can also send the request without a specification — but only an accurate selection gets an accurate quote.
Dimensions & Specifications (ISO / DIN)
Every row below is a starting point for the customizer above — pick any size and the drawing will redraw to that row.
For rope diameter (mm)
Inside length (mm)
Outside length (mm)
Material
Reference standard
4
18
28
Galvanized steel
DIN 6899 / GB/T 5974
5
22
33
Galvanized steel
DIN 6899 / GB/T 5974
6
25
38
Galvanized steel
DIN 6899 / GB/T 5974
8
32
48
Galvanized steel
DIN 6899 / GB/T 5974
10
38
58
Galvanized steel
DIN 6899 / GB/T 5974
12
45
68
Galvanized steel
DIN 6899 / GB/T 5974
16
58
88
Galvanized steel
DIN 6899 / GB/T 5974
20
72
108
Galvanized steel
DIN 6899 / GB/T 5974
24
86
128
Galvanized steel
DIN 6899 / GB/T 5974
Wire Rope Thimble — ISO / DIN (Series 155) are rigging hardware manufactured to ISO / DIN. This page lists the full dimensional range with the key specifications engineers need to select and specify them.
What Are Wire Rope Thimble — ISO / DIN (Series 155)?
Wire Rope Thimble — ISO / DIN (Series 155) are rigging hardware defined by ISO / DIN. They are selected by rope diameter and the dimensional characteristics shown below, and are available in a range of materials and finishes to suit the application and environment.
CAD Source Reference
This page is generated from an original native CAD part model (SolidWorks .SLDPRT) of the wire rope thimble — iso / din (series 155) family maintained by our engineering team. The technical drawing shown above is rebuilt parametrically from the dimensional table, so it always reflects the exact size and configuration you select. Native CAD files (STEP / SLDPRT) can be supplied with your quotation on request.
Materials & Finishes
Rigging items are supplied in galvanized or stainless steel and are specified by working load limit and the design factor applied to it, together with the finish appropriate to the environment. The rated capacity, not the material alone, is the governing figure.
Specification Guides
Each size, material and standard of Wire Rope Thimble — ISO / DIN (Series 155) has its own reference page with the figures for that one configuration.
Goes With
Hardware commonly specified alongside Wire Rope Thimble — ISO / DIN (Series 155).
Pricing
Wire Rope Thimble — ISO / DIN (Series 155) are supplied to order. Pricing starts from approximately US$0.80 per piece for standard sizes in galvanized steel at the catalog working load limit; final pricing depends on size, material, finish and order quantity (MOQ applies). Submit your exact configuration with the quote form above.
Custom manufacturing · Made to drawing
Need a wire rope thimble outside the standard range?
A non-standard rigging hardware is quoted from the drawing; where one already exists in the catalog, the special is usually a variation on its tooling. Made by hot forging.
Minimum order from 2,000 pieces; samples within 7 days of drawing approval.
This part is cold-formed, threaded, heat-treated and finished in-house. The stages below are where its class and finish are actually decided.
01
Cold heading
Wire rod is drawn to size and cold-formed into blanks. Forming rather than cutting keeps the grain flow continuous around the head, which is where a bolt is most likely to fail.
Head dimensions and under-head radius checked at set-up and per shift.
02
Thread rolling
Threads are rolled between hardened dies rather than cut. Rolled threads are stronger in fatigue than cut threads and hold pitch and flank angle far more consistently across a batch.
Go / no-go ring gauges to ISO 965 tolerance class 6g.
03
Heat treatment
Quench-and-temper brings carbon and alloy steel to the property class ordered — 8.8, 10.9 or 12.9 — with the furnace charge tracked so a finished lot can be traced back to it.
Core hardness and tensile tested per lot to ISO 898-1.
04
Surface treatment
Zinc, zinc-nickel, hot-dip galvanizing, black oxide, phosphate and Dacromet, selected against the service environment rather than against the price list.
Coating thickness and neutral salt spray hours to ISO 9227.

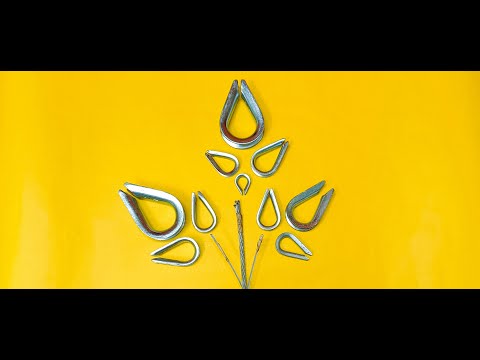

Video: Wire Rope Thimble
Third-party video, selected automatically for this topic. It is not produced by Engineering Hardware and is not a specification source — use the tables on this page for dimensional data.
Frequently Asked Questions
What standard are Wire Rope Thimble — ISO / DIN (Series 155) manufactured to?
Wire Rope Thimble — ISO / DIN (Series 155) are manufactured to ISO / DIN. The dimensional values on this page follow that standard.
Which sizes of Wire Rope Thimble — ISO / DIN (Series 155) does Engineering Hardware supply?
The table on this page lists 9 sizes for Wire Rope Thimble — ISO / DIN (Series 155), ranging from 4 to 24. Sizes outside the table can be quoted on request.
In which materials are Wire Rope Thimble — ISO / DIN (Series 155) supplied?
Wire Rope Thimble — ISO / DIN (Series 155) are supplied in galvanized and stainless steel, rated by working load limit, with finishes including zinc plating, hot-dip galvanizing and black oxide. Choose material and finish to suit the load and the service environment for Wire Rope Thimble — ISO / DIN (Series 155).
How do I request a quotation?
Use the parametric drawing on this page to set the exact configuration (size, material, finish) and click "Request this configuration" — a specialist from Engineering Hardware will respond within one business day.
