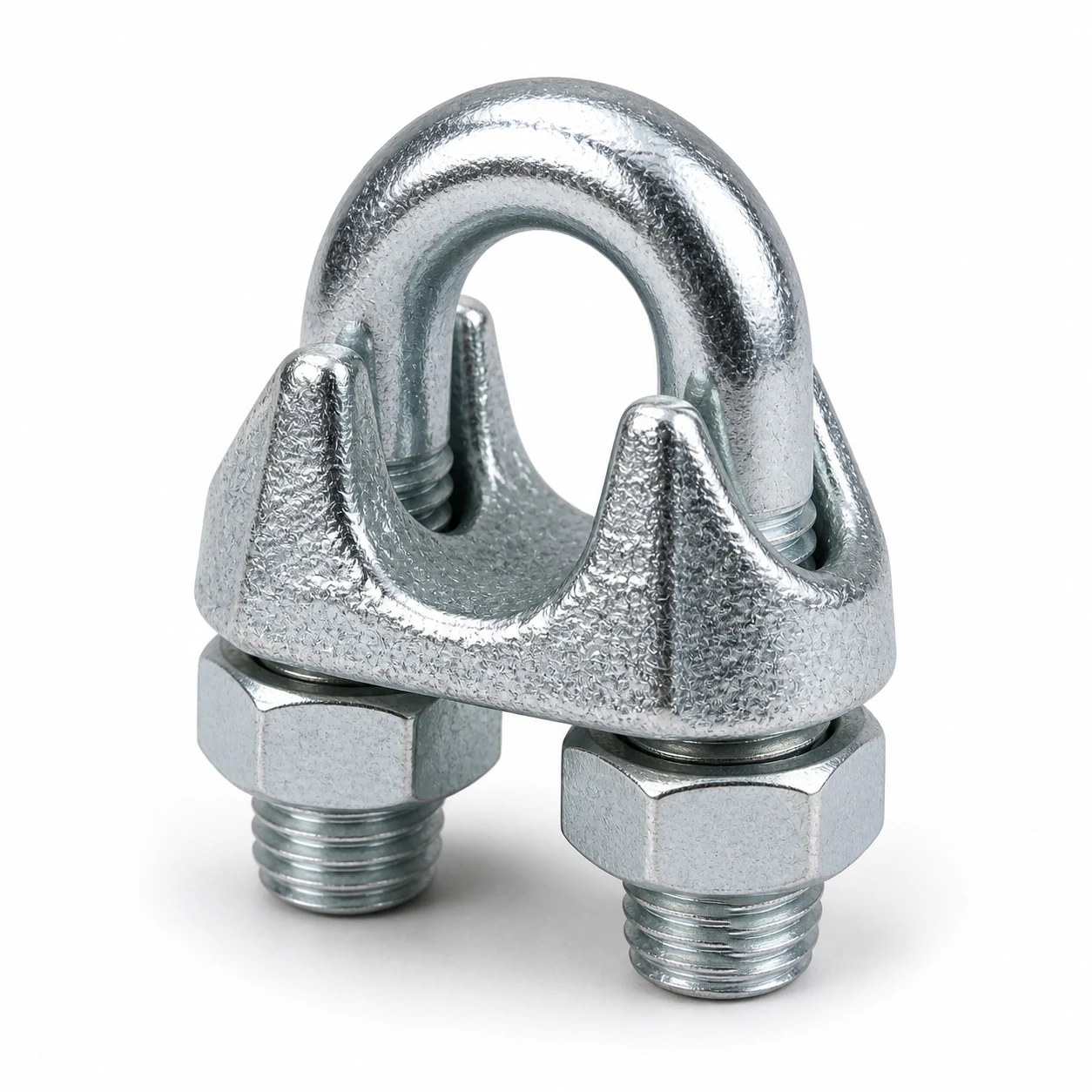

Request a Quotation for Wire Rope Clip (U-Bolt) — ISO / DIN (Series 157)
Tell us the size, material, finish and quantity you need for Wire Rope Clip (U-Bolt) — ISO / DIN (Series 157) (ISO / DIN) and our team will respond within one business day. Click "Request this configuration" on the drawing above to send the parameters you just chose straight into this form.
Dimensions & Specifications (ISO / DIN)
Every row below is a starting point for the customizer above — pick any size and the drawing will redraw to that row.
For rope diameter (mm)
U-bolt diameter (mm)
Saddle width (mm)
Bolt thread
Working load limit (kg)
Reference standard
6
M5
16
M5
60
DIN 1142 / GB/T 5976
8
M6
20
M6
110
DIN 1142 / GB/T 5976
10
M8
26
M8
180
DIN 1142 / GB/T 5976
12
M10
32
M10
260
DIN 1142 / GB/T 5976
16
M12
38
M12
460
DIN 1142 / GB/T 5976
20
M14
45
M14
720
DIN 1142 / GB/T 5976
24
M16
55
M16
1050
DIN 1142 / GB/T 5976
30
M20
70
M20
1640
DIN 1142 / GB/T 5976
Wire Rope Clip (U-Bolt) — ISO / DIN (Series 157) are rigging hardware manufactured to ISO / DIN. This page lists the full dimensional range with the key specifications engineers need to select and specify them.
What Are Wire Rope Clip (U-Bolt) — ISO / DIN (Series 157)?
Wire Rope Clip (U-Bolt) — ISO / DIN (Series 157) are rigging hardware defined by ISO / DIN. They are selected by thread size and the dimensional characteristics shown below, and are available in a range of materials and finishes to suit the application and environment.
CAD Source Reference
This page is generated from an original native CAD part model (SolidWorks .SLDPRT) of the wire rope clip (u-bolt) — iso / din (series 157) family maintained by our engineering team, covering 3 recorded size configurations. The technical drawing shown above is rebuilt parametrically from the dimensional table, so it always reflects the exact size and configuration you select. Native CAD files (STEP / SLDPRT) can be supplied with your quotation on request.
Materials & Finishes
Common materials include carbon steel (typically zinc plated or hot-dip galvanized), alloy steel in property classes 8.8, 10.9 and 12.9, and stainless steel A2 (304) or A4 (316) for corrosion resistance. Specify the material, property class and surface finish appropriate to your load and environment.
Wire Rope Clip (U-Bolt) — ISO / DIN (Series 157) are stocked and supplied to order. Pricing starts from approximately US$0.80 per piece for standard sizes in carbon steel; final pricing depends on size, material, finish and order quantity (MOQ applies). Submit your exact configuration with the quote form above.
Frequently Asked Questions
Which standard governs Wire Rope Clip (U-Bolt) — ISO / DIN (Series 157), and how are they driven?
Wire Rope Clip (U-Bolt) — ISO / DIN (Series 157) are manufactured to ISO / DIN and use the standard drive for this product family. The dimensional values on this page follow that standard.
Which sizes of Wire Rope Clip (U-Bolt) — ISO / DIN (Series 157) does engineeringhardware.com supply?
The table on this page lists 8 sizes for Wire Rope Clip (U-Bolt) — ISO / DIN (Series 157), ranging from 6 to 30. Sizes outside the table can be quoted on request.
In which materials are Wire Rope Clip (U-Bolt) — ISO / DIN (Series 157) supplied?
Wire Rope Clip (U-Bolt) — ISO / DIN (Series 157) are supplied in carbon steel and stainless, with finishes including zinc plating, hot-dip galvanizing and black oxide. Choose material and finish to suit the load and the service environment for Wire Rope Clip (U-Bolt) — ISO / DIN (Series 157).
How do I request a quotation?
Use the parametric drawing on this page to set the exact configuration (size, material, finish) and click "Request this configuration" — a specialist from engineeringhardware.com will respond within one business day.
