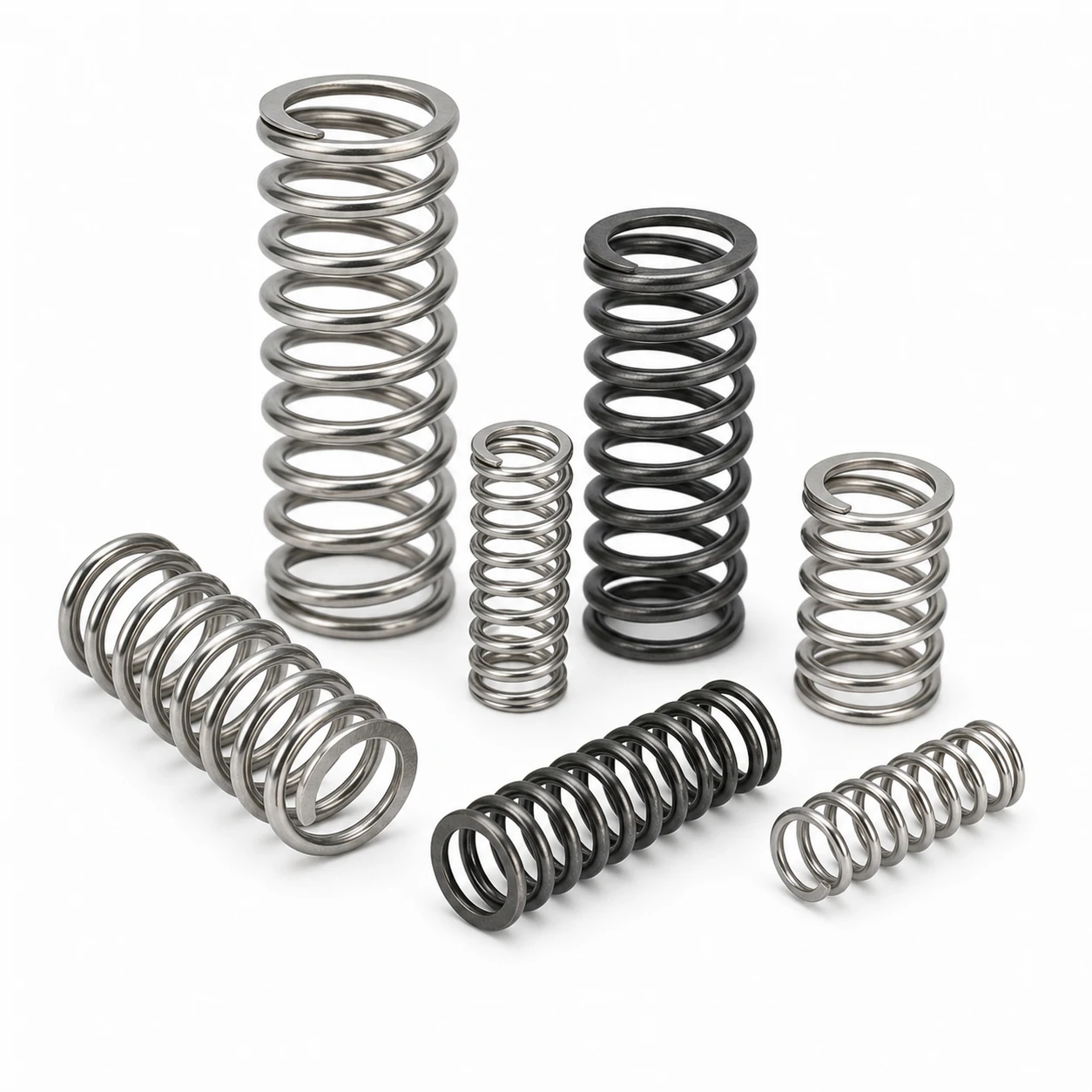

| 0.5 | 3.0 | 4.0 | 15 | 8 | 6.9 | 1.81 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 0.5 | 4.0 | 5.0 | 20 | 10 | 5.6 | 0.680 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 0.6 | 4.0 | 5.2 | 20 | 9 | 9.3 | 1.47 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 0.7 | 5.0 | 6.4 | 25 | 10 | 12 | 1.29 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 0.8 | 5.0 | 6.6 | 25 | 10 | 17 | 2.08 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 1.0 | 6.0 | 8.0 | 30 | 10 | 28 | 2.89 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 1.0 | 8.0 | 10.0 | 40 | 12 | 23 | 1.13 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 1.2 | 8.0 | 10.4 | 40 | 10 | 37 | 2.64 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 1.5 | 10.0 | 13.0 | 50 | 10 | 58 | 3.30 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 1.6 | 12.0 | 15.2 | 60 | 10 | 61 | 2.58 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 2.0 | 12.0 | 16.0 | 60 | 10 | 110 | 5.78 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 2.0 | 16.0 | 20.0 | 80 | 12 | 90 | 2.27 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 2.5 | 16.0 | 21.0 | 80 | 10 | 170 | 6.12 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 2.5 | 20.0 | 25.0 | 100 | 12 | 140 | 2.83 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 3.0 | 20.0 | 26.0 | 100 | 10 | 230 | 6.60 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 3.0 | 25.0 | 31.0 | 120 | 12 | 190 | 3.05 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 4.0 | 25.0 | 33.0 | 120 | 10 | 430 | 10.4 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 4.0 | 30.0 | 38.0 | 150 | 12 | 380 | 5.38 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 5.0 | 30.0 | 40.0 | 150 | 10 | 690 | 14.4 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 5.0 | 40.0 | 50.0 | 200 | 12 | 560 | 5.67 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 6.0 | 40.0 | 52.0 | 200 | 10 | 930 | 13.2 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 6.0 | 50.0 | 62.0 | 250 | 12 | 790 | 6.10 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 8.0 | 50.0 | 66.0 | 250 | 10 | 1700 | 20.8 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 8.0 | 65.0 | 81.0 | 300 | 12 | 1300 | 8.70 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 10.0 | 65.0 | 85.0 | 300 | 10 | 2600 | 23.5 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
| 10.0 | 80.0 | 100.0 | 350 | 12 | 1900 | 11.3 | Spring steel SH/DH | DIN 2098 / EN 15800 | Cold-coiled compression spring, ground and squared ends. Rate calculated from k = G d^4 / (8 D^3 n) with G = 79 300 N/mm^2; Fn is the lower of the force at a permissible shear stress of 600 N/mm^2 (Wahl-corrected) and the force at 80% of the travel to solid. Calculated reference values, not test results — request a test certificate for a load-critical application. |
