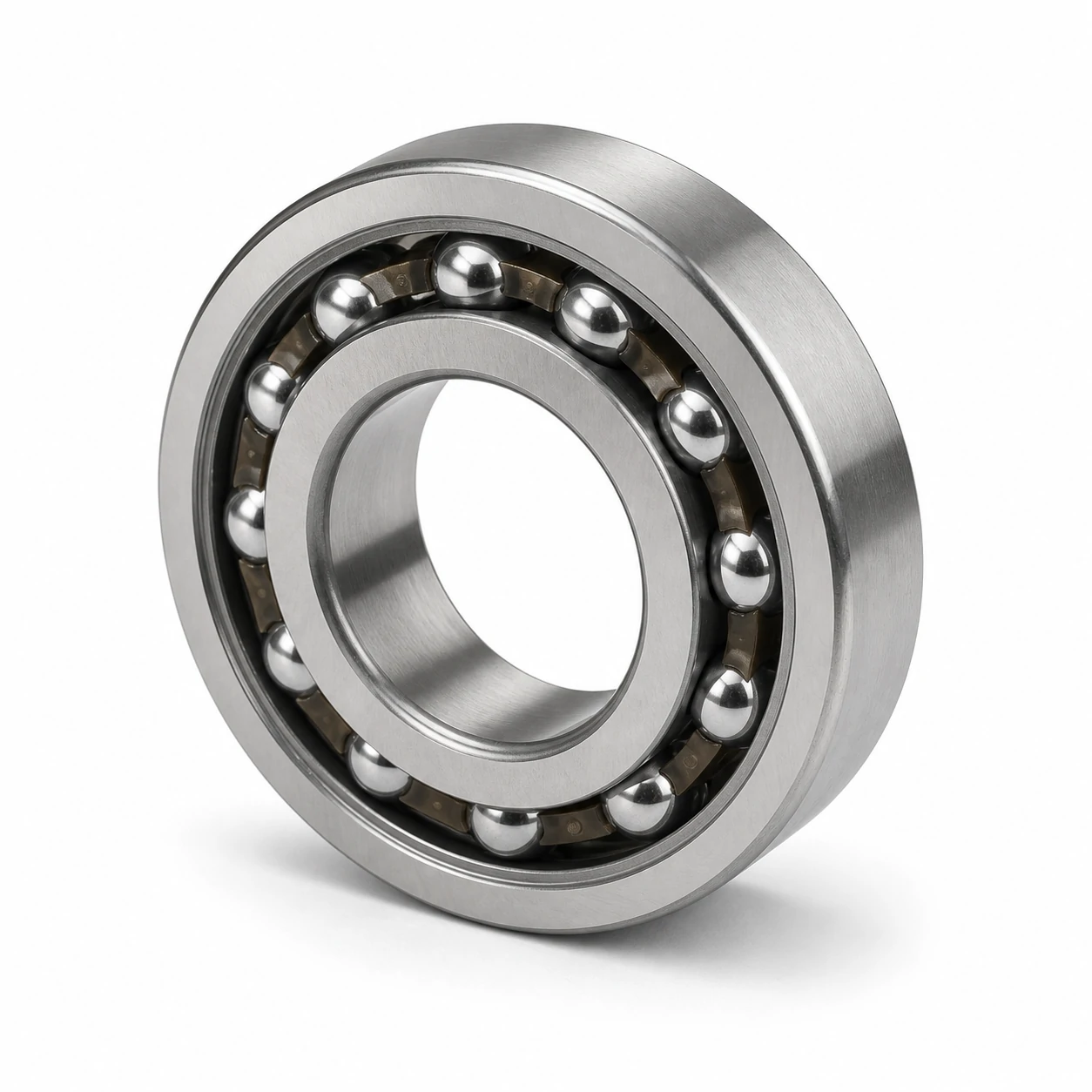

Choosing Angular Contact Ball Bearing — ISO / DIN (Series 138) in A2 Stainless Steel comes down to matching the grade to the environment: good general corrosion resistance and largely non-magnetic. Below are the properties, the full size table, and the grades worth comparing before you commit.
Why Choose A2 Stainless Steel for Angular Contact Ball Bearing — ISO / DIN (Series 138)
The most common stainless grade for indoor and general outdoor fasteners. For angular contact ball bearing — iso / din (series 138), this matters when good general corrosion resistance is the primary requirement.
Mechanical & Physical Properties
| Grade designation | A2-70 (304) |
|---|---|
| Magnetic response | Largely non-magnetic |
| Service temperature | approx. -200 °C to +400 °C |
| Corrosion characteristic | Good general corrosion resistance |
Corrosion Behavior in Service
A2 (304) gives excellent atmospheric and most-water corrosion resistance and is the most common stainless for Angular Contact Ball Bearing — ISO / DIN (Series 138) in indoor and general outdoor service. In chloride-bearing environments (marine air, road salt, swimming pools) consider stepping up to A4 (316).
Comparable Grades
For Angular Contact Ball Bearing — ISO / DIN (Series 138), the alternative stainless grade is A4 (316). A2 (304) suits general indoor and outdoor service; A4 (316) adds molybdenum for marine and chloride environments. Where higher strength matters more than corrosion, switch to plated alloy-steel class 8.8 or 10.9.
Sizes of Angular Contact Ball Bearing — ISO / DIN (Series 138) Available in A2 Stainless Steel
| Bore d (mm) | Outer diameter D (mm) | Width B (mm) | Contact angle (deg) | Dynamic load C (kN) | Reference standard |
|---|---|---|---|---|---|
| 10 | 30 | 9 | 15 | 5.85 | ISO 76 / GB/T 292 |
| 15 | 35 | 11 | 15 | 8.06 | ISO 76 / GB/T 292 |
| 20 | 47 | 14 | 15 | 12.5 | ISO 76 / GB/T 292 |
| 25 | 52 | 15 | 15 | 14.8 | ISO 76 / GB/T 292 |
| 30 | 62 | 16 | 15 | 20.3 | ISO 76 / GB/T 292 |
| 40 | 80 | 18 | 15 | 32.5 | ISO 76 / GB/T 292 |
| 50 | 90 | 20 | 15 | 37.5 | ISO 76 / GB/T 292 |
| 60 | 110 | 22 | 25 | 55.0 | ISO 76 / GB/T 292 |
| 70 | 125 | 24 | 25 | 70.2 | ISO 76 / GB/T 292 |
| 80 | 140 | 26 | 25 | 82.4 | ISO 76 / GB/T 292 |
