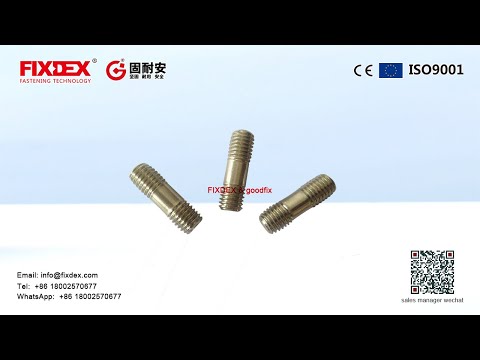

Dimensional and assembly data for M10 Stud Bolt, Double-End to GB/T 15389 / DIN 938. Includes head size and width across flats, clearance-hole and tapping-drill diameters, tightening torque per property class, and the sizes to step up or down to when the joint requires it.
M10 Dimensional Row (GB/T 15389 / DIN 938)
| Thread size | Pitch (mm) | Length L (mm) | Engagement depth bm (mm) | Material | Reference standard |
|---|---|---|---|---|---|
| M10 | 1.5 | 80 | 15 | Cl. 8.8 alloy steel | DIN 939 / GB/T 901 |
Spanner & Drive for M10 Stud Bolt, Double-End — GB/T 15389 / DIN 938 (Series 092)
Drive geometry for M10 Stud Bolt, Double-End — GB/T 15389 / DIN 938 (Series 092) is given by the row above; match the tool to the listed values.
Hole Sizes for M10
| Coarse-thread pitch (ISO 724) | 1.5 mm |
|---|---|
| Through-hole / clearance (ISO 273 medium) | 11 mm |
| Tapping drill, coarse thread | 8.5 mm |
Tightening Torque for M10
| Class 8.8 (dry, ~µ 0.125) | ≈ 49 Nm |
|---|---|
| Class 10.9 (dry, ~µ 0.125) | ≈ 69 Nm |
| Class 12.9 (dry, ~µ 0.125) | ≈ 83 Nm |
Indicative dry-joint values. Lubrication can lower the required torque by 15–25%. Always confirm against the joint design, especially when going up a strength class.
Proof Load & Strength for M10
| Tensile stress area As (ISO 898-1) | 58 mm² |
|---|---|
| Proof load, class 8.8 | 34 kN |
| Proof load, class 10.9 | 48 kN |
| Proof load, class 12.9 | 56 kN |
| Min. ultimate tensile, class 8.8 | 46 kN |
Proof load = stress area × proof stress per ISO 898-1. Design joints so the working preload stays below the proof load of the selected class.
M10 Stud Bolt, Double-End — GB/T 15389 / DIN 938 (Series 092) Weight
A steel M10 stud bolt, double-end at the listed 80 mm length weighs approximately 49 g each — about 49 kg per 1,000 pieces. Stainless A2/A4 weighs roughly the same (density 7.9–8.0 g/cm³). Actual weight varies slightly with head form, thread and finish; use this figure for freight estimation only.
Common Applications for M10 Stud Bolt, Double-End — GB/T 15389 / DIN 938 (Series 092)
M10 Stud Bolt, Double-End — GB/T 15389 / DIN 938 (Series 092) are commonly specified for general-purpose machinery, jigs, fixturing and light structural connections.
Mating Parts for M10
For M10, pair with a M10 hex nut (ISO 4032 / DIN 934) and, where used, a M10 flat washer (ISO 7089 / DIN 125A) under the head and under the nut.
When to Step Up or Down from M10
When the joint preload approaches the proof load of M10 class 8.8, step up to M12 class 8.8 (or move to M10 class 10.9). When the joint is over-specified, M8 often saves weight and cost without losing the safety margin.
