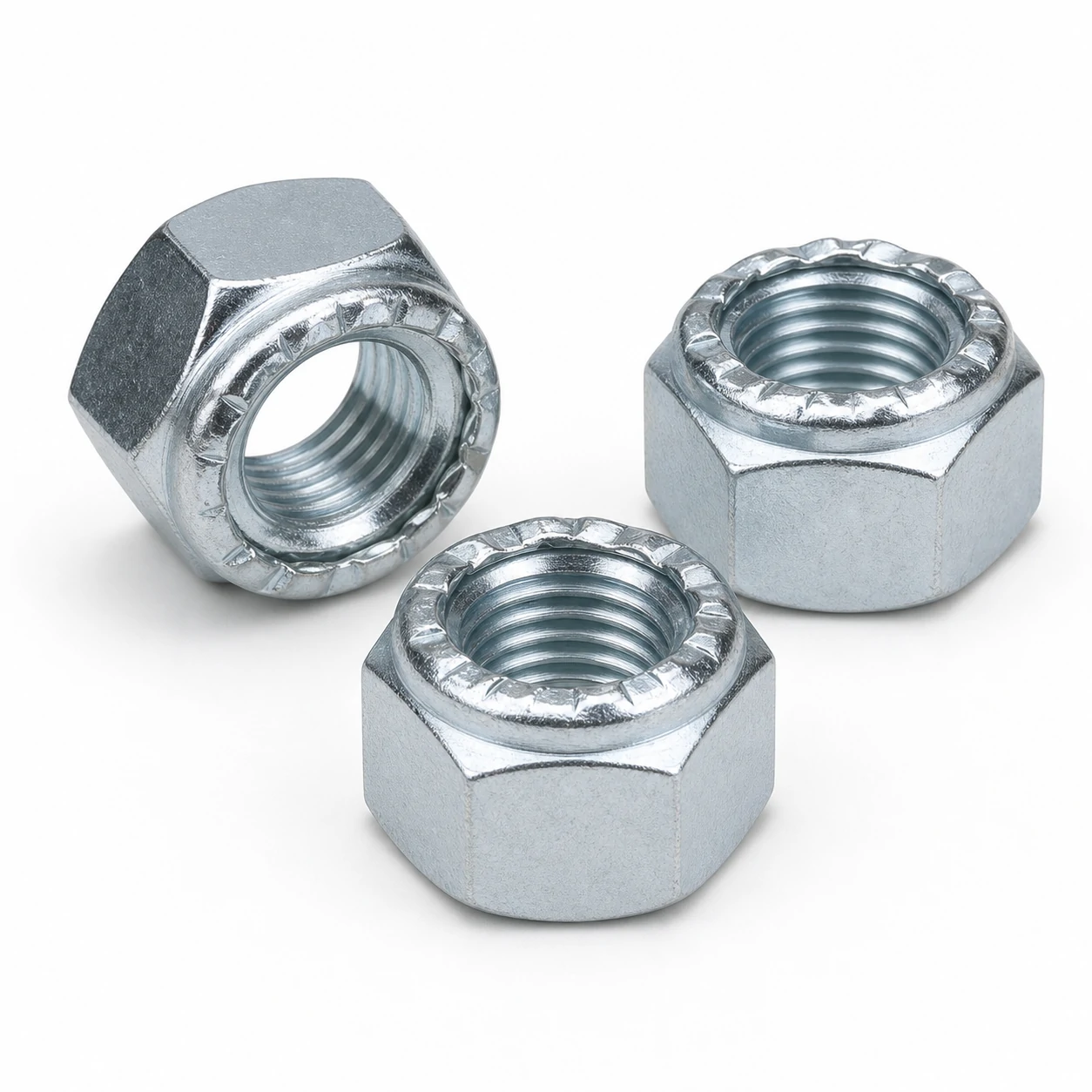

M12 All-Metal Lock Nuts is the m12-thread variant of All-Metal Lock Nuts manufactured to ISO 7042 / DIN 980. This page focuses on the data engineers reach for at the bench: dimensional values for the M12 size, the spanner/drive that fits, and the assembly data you need to install it.
M12 Dimensional Row (ISO 7042 / DIN 980)
| Size | Pitch (mm) | Width across flats s (mm) | Nut height m (mm) | Reference standard | Notes |
|---|---|---|---|---|---|
| M12 | 1.75 | 18.0 | 13.0 | ISO 7042 / DIN 980 | Deformed-top locking, high-temperature capable |
Spanner & Drive for M12 All-Metal Lock Nuts
Drive geometry for M12 All-Metal Lock Nuts is given by the row above; match the tool to the listed values.
Common Applications for M12 All-Metal Lock Nuts
M12 All-Metal Lock Nuts are commonly specified for medium-duty structural joints and motor / chassis mounting.
Mating Parts for M12
Pair M12 with the matching M12 bolt or screw, plus a M12 flat washer where required to distribute load on softer materials.
When to Step Up or Down from M12
When the joint preload approaches the proof load of M12 class 8.8, step up to M16 class 8.8 (or move to M12 class 10.9). When the joint is over-specified, M10 often saves weight and cost without losing the safety margin.
