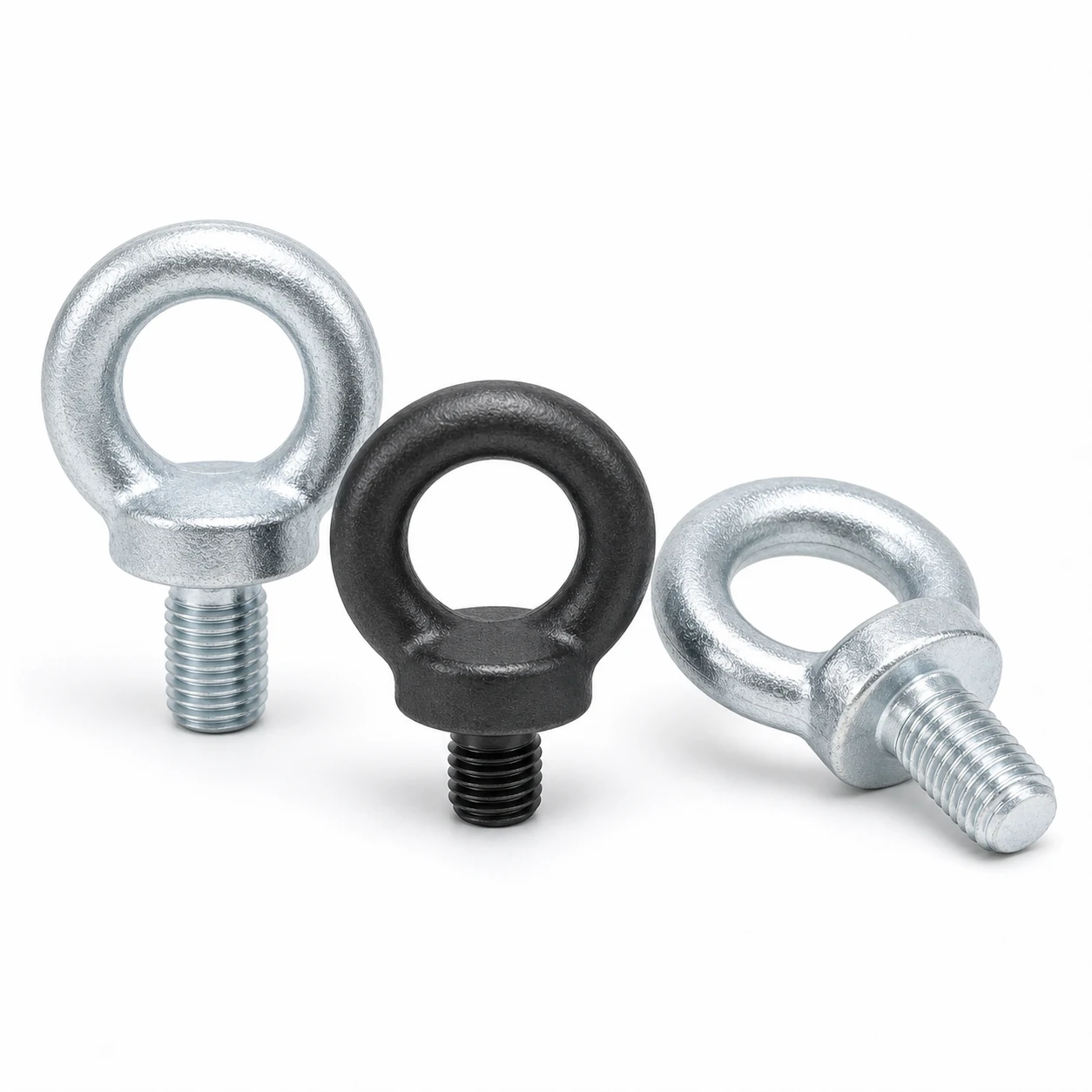

The M14 size of Eye Bolts is dimensioned by DIN 580. The table below gives the dimensional row from the standard, followed by the rated working load limit and the notes for safe installation.
M14 Dimensional Row (DIN 580)
| Thread size | Pitch (mm) | Ring inside diameter d (mm) | Ring outside diameter (mm) | Thread length (mm) | Max load vertical (kg) | Reference standard | Notes |
|---|---|---|---|---|---|---|---|
| M14 | 2.0 | 42 | 72 | 28 | 500 | DIN 580 / WLL | Drop-forged lifting eye bolt, vertical pull |
Common Applications for M14 Eye Bolts
M14 Eye Bolts are commonly specified for medium-duty structural connections, automotive sub-frames and equipment chassis.
Mating Parts for M14
For M14, pair with a M14 hex nut (ISO 4032 / DIN 934) and, where used, a M14 flat washer (ISO 7089 / DIN 125A) under the head and under the nut.
