Specification summary of DIN 7504 as applied to self-drilling screws: the dimensions the standard fixes, the full size range supplied, and the related designations commonly cross-referenced.

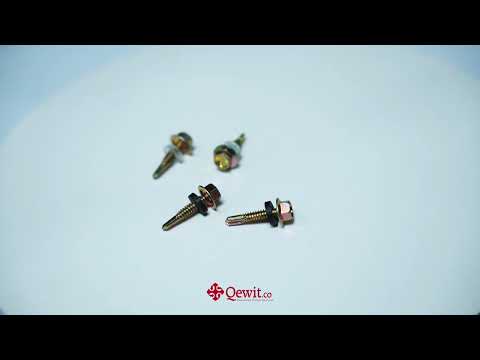

DIN 7504 — Scope
DIN 7504 is "Drilling screws with tapping screw thread".
Material, property class, surface finish and packaging are governed by separate documents — ISO 898-1 and ISO 898-2 for mechanical property classes, ISO 4042 for electroplated finishes.
Tolerance & Product Grades
DIN 7504 does not divide self-drilling screws into product grades. Tolerances are given as limits on the individual dimensions in the table.
Where a general-tolerance class is cited on the drawing instead, it applies to the dimensions not otherwise toleranced.
Dimensions Specified by DIN 7504
| Size | Nominal diameter (mm) | Pitch (mm) | Head diameter dk (mm) | Head height k (mm) | Drill point capacity (mm) | Common length range (mm) | Reference standard | Notes |
|---|---|---|---|---|---|---|---|---|
| ST3.5 | 3.5 | 1.27 | 6.9 | 2.1 | 0.7~2.0 | 13~25 | DIN 7504 K/N | Tek self-drilling screw, drill flute point |
| ST3.9 | 3.9 | 1.29 | 7.5 | 2.3 | 0.7~2.5 | 13~32 | DIN 7504 K/N | Tek self-drilling screw, drill flute point |
| ST4.2 | 4.2 | 1.41 | 8.2 | 2.5 | 0.7~3.0 | 13~38 | DIN 7504 K/N | Tek self-drilling screw, drill flute point |
| ST4.8 | 4.8 | 1.59 | 9.5 | 2.9 | 0.7~4.0 | 16~50 | DIN 7504 K/N | Tek self-drilling screw, drill flute point |
| ST5.5 | 5.5 | 1.81 | 10.9 | 3.3 | 1.0~5.0 | 19~60 | DIN 7504 K/N | Tek self-drilling screw, drill flute point |
| ST6.3 | 6.3 | 1.81 | 12.5 | 3.8 | 1.0~6.0 | 19~80 | DIN 7504 K/N | Tek self-drilling screw, drill flute point |
Equivalent Standards
Where direct equivalents exist (ISO ↔ DIN, ISO ↔ ASME), they are listed on the parent Self-Drilling Screws page.
Always confirm against the dimensions on this page, since some "equivalent" standards differ in tolerances and head geometry.
Companion Standards
DIN 7504 controls only the geometry of self-drilling screws. The mechanical strength is set by ISO 898-1 (bolts, screws and studs) or ISO 898-2 (nuts); the surface finish is governed by separate finish standards such as ISO 4042 for electroplating. For corrosion testing, the relevant document is ISO 9227 (neutral salt spray).
