15 catalogued sizes, dimensioned to Industry standard. Pick any row and the technical drawing redraws to it.
Specialty Nails to Industry standard are catalogued in dia 1.4-3.8 mm, with head 3-9.5 mm. 15 sizes are held in the table below, and the technical drawing redraws to whichever row you select.
Standard
Industry standard
Dia
1.4-3.8 mm
Head
3-9.5 mm
Catalogued sizes
15
Dimensions are nominal values from the governing standard. Confirm the tolerance class for your application before ordering.
Customize the parameters below — every spec field is editable, and the drawing redraws to match the values you choose. Changing the size will snap the other fields to that size's standard values; you can then override any individual value.
Dimensioned line drawing of Round steel nail Specialty Nails to Industry standard. Side view and top view, drawn to the dimensions in the table below and redrawn for any size selected.
Diameter (mm)
1.8
Common length range (mm)
32~65
Head diameter (mm)
4.5
Point form
Pointed
Application
General woodworking
Sends the selected values to the quote form below.
Request a Quotation for Specialty Nails
The form below follows the current technical drawing configuration. Change the drawing values above and the request details update automatically.
Dimensions & Specifications (Industry standard)
Every row below is a starting point for the customizer above — pick any size and the drawing will redraw to that row.
Nail type
Diameter (mm)
Common length range (mm)
Head diameter (mm)
Point form
Application
Reference standard
Round steel nail
1.8
32~65
4.5
Pointed
General woodworking
DIN 1151
Round steel nail
2.5
45~90
6.5
Pointed
General woodworking
DIN 1151
Round steel nail
3.1
60~120
7.5
Pointed
Structural woodworking
DIN 1151
Round steel nail
3.8
80~150
9.5
Pointed
Structural woodworking
DIN 1151
Spiral nail
2.5
45~90
5.5
Pointed
Pallet / crate
Industry standard
Spiral nail
3.1
60~120
7.5
Pointed
Pallet / crate
Industry standard
Ring-shank nail
2.5
45~75
6.5
Pointed
Pull-out resistant
DIN 1052
Ring-shank nail
3.1
60~100
7.5
Pointed
Pull-out resistant
DIN 1052
Concrete steel nail
2.5
20~50
5.5
Hardened taper
Concrete / masonry
Industry standard
Concrete steel nail
3.0
30~60
6.5
Hardened taper
Concrete / masonry
Industry standard
Pneumatic nail
1.6
15~50
3.0
D-head
For nail gun
Industry standard
Pneumatic nail
2.0
25~65
3.5
D-head
For nail gun
Industry standard
Staple
1.4
10~20
-
Double-pointed
Cable / hose fixing
Industry standard
Staple
1.8
14~25
-
Double-pointed
Cable / hose fixing
Industry standard
Staple
2.0
16~32
-
Double-pointed
Cable / hose fixing
Industry standard
Manufactured to Industry standard, Specialty Nails are nails supplied by Engineering Hardware. The dimensional data, materials and selection notes are summarized here.

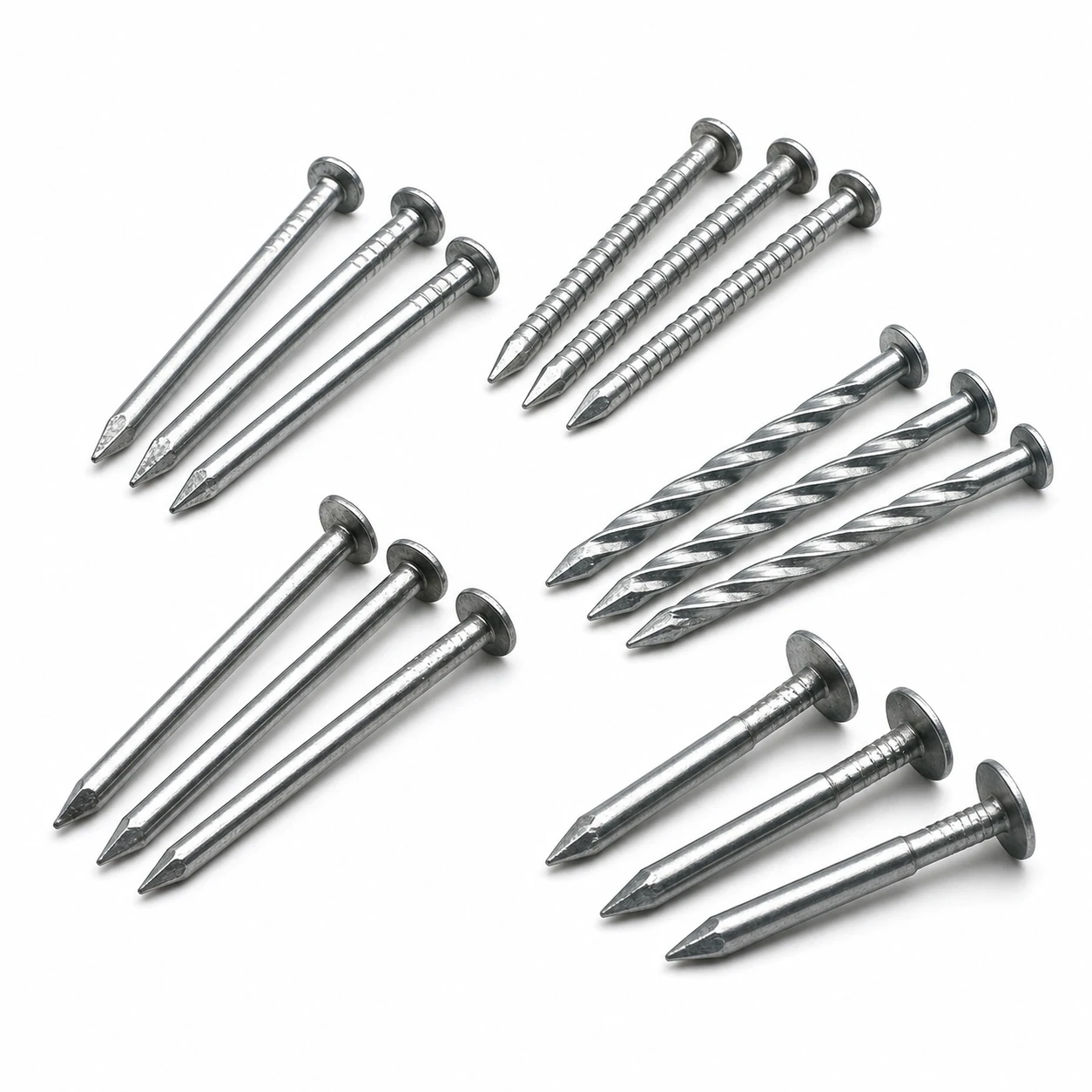

What Are Specialty Nails?
Specialty Nails are nails defined by Industry standard. They are selected by size designation and the dimensional characteristics shown below, and are available in a range of materials and finishes to suit the application and environment.
Materials & Finishes
Common materials include carbon steel (typically zinc plated or hot-dip galvanized), hardened or case-hardened steel where wear matters, and stainless steel A2 (304) or A4 (316) for corrosion resistance. Specify the material, hardness where relevant, and the surface finish appropriate to your application and environment.
Specification Guides
Each size, material and standard of Specialty Nails has its own reference page with the figures for that one configuration.
Specialty Nails are supplied to order. Pricing starts from approximately US$0.006 per piece for standard sizes in carbon steel; final pricing depends on size, material, finish and order quantity (MOQ applies). Submit your exact configuration with the quote form above.
Custom manufacturing · Made to drawing
Need a specialty nails outside the standard range?
A non-standard nail is quoted from the drawing; where one already exists in the catalog, the special is usually a variation on its tooling.
Minimum order from 2,000 pieces; samples within 7 days of drawing approval.
This part is cold-formed, threaded, heat-treated and finished in-house. The stages below are where its class and finish are actually decided.
01
Cold heading
Wire rod is drawn to size and cold-formed into blanks. Forming rather than cutting keeps the grain flow continuous around the head, which is where a bolt is most likely to fail.
Head dimensions and under-head radius checked at set-up and per shift.
02
Thread rolling
Threads are rolled between hardened dies rather than cut. Rolled threads are stronger in fatigue than cut threads and hold pitch and flank angle far more consistently across a batch.
Go / no-go ring gauges to ISO 965 tolerance class 6g.
03
Heat treatment
Quench-and-temper brings carbon and alloy steel to the property class ordered — 8.8, 10.9 or 12.9 — with the furnace charge tracked so a finished lot can be traced back to it.
Core hardness and tensile tested per lot to ISO 898-1.
04
Surface treatment
Zinc, zinc-nickel, hot-dip galvanizing, black oxide, phosphate and Dacromet, selected against the service environment rather than against the price list.
Coating thickness and neutral salt spray hours to ISO 9227.
Video: Specialty Nails
Third-party video, selected automatically for this topic. It is not produced by Engineering Hardware and is not a specification source — use the tables on this page for dimensional data.
Frequently Asked Questions
What standard are Specialty Nails manufactured to?
Specialty Nails are manufactured to Industry standard. The dimensional values on this page follow that standard.
What is the size range of Specialty Nails?
The table on this page lists 15 sizes for Specialty Nails, ranging from Round steel nail to Staple. Sizes outside the table can be quoted on request.
In which materials are Specialty Nails supplied?
Specialty Nails are supplied in low-carbon and medium-carbon steel, with finishes including zinc plating, hot-dip galvanizing and black oxide. Choose material and finish to suit the load and the service environment for Specialty Nails.
How do I request a quotation?
Use the parametric drawing on this page to set the exact configuration (size, material, finish) and click "Request this configuration" — a specialist from Engineering Hardware will respond within one business day.
