34 catalogued sizes, dimensioned to DIN 1151. Pick any row and the technical drawing redraws to it.
Wire Nails to DIN 1151 are catalogued in dia 1-8 mm, with long 20-250 mm, head 2.5-20 mm. 34 sizes are held in the table below, and the technical drawing redraws to whichever row you select.
Standard
DIN 1151
Dia
1-8 mm
Long
20-250 mm
Head
2.5-20 mm
Catalogued sizes
34
Dimensions are nominal values from the governing standard. Confirm the tolerance class for your application before ordering.
Customize the parameters below — every spec field is editable, and the drawing redraws to match the values you choose. Changing the size will snap the other fields to that size's standard values; you can then override any individual value.
Dimensioned line drawing of 1.0 Wire Nails to DIN 1151. Side view and top view, drawn to the dimensions in the table below and redrawn for any size selected.
Length l (mm)
20
Head diameter dk (mm)
2.5
Head type
Dome head
Material
Low-carbon steel wire
Sends the selected values to the quote form below.
Request a Quotation for Wire Nails
The form below follows the current technical drawing configuration. Change the drawing values above and the request details update automatically.
Dimensions & Specifications (DIN 1151)
Every row below is a starting point for the customizer above — pick any size and the drawing will redraw to that row.
Diameter d (mm)
Length l (mm)
Head diameter dk (mm)
Head type
Material
Reference standard
1.0
20
2.5
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
1.2
25
3.0
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
1.4
30
3.5
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
1.6
35
4.0
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
1.8
40
4.5
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
2.0
40
5.0
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
2.0
50
5.0
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
2.5
50
6.5
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
2.5
60
6.5
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
2.8
65
7.0
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
3.0
60
7.5
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
3.0
70
7.5
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
3.0
80
7.5
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
3.4
80
8.5
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
3.4
90
8.5
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
3.8
90
9.5
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
3.8
100
9.5
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
4.2
100
10.5
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
4.2
110
10.5
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
4.6
110
11.5
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
4.6
120
11.5
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
5.0
120
12.5
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
5.0
130
12.5
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
5.5
130
14.0
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
5.5
140
14.0
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
5.5
150
14.0
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
6.0
150
15.0
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
6.0
160
15.0
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
6.7
160
17.0
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
6.7
180
17.0
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
7.0
180
17.5
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
7.0
200
17.5
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
8.0
200
20.0
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051
8.0
250
20.0
Dome head
Low-carbon steel wire
DIN 1151 / ISO 1051

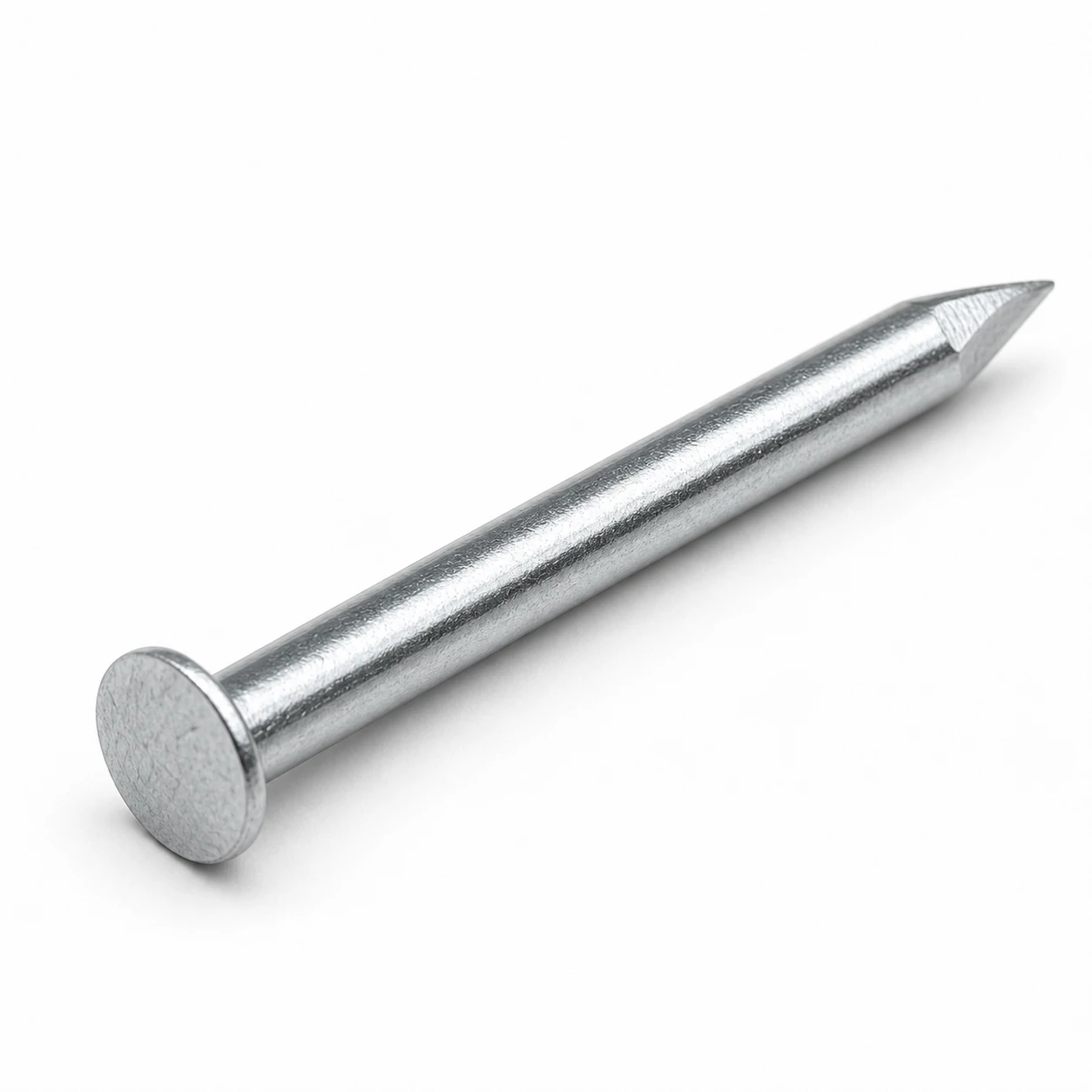

Wire Nails are nails manufactured to DIN 1151. This page lists the full dimensional range with the key specifications engineers need to select and specify them.
What Are Wire Nails?
Wire Nails are nails defined by DIN 1151. They are selected by nominal diameter and the dimensional characteristics shown below, and are available in a range of materials and finishes to suit the application and environment.
Materials & Finishes
Common materials include carbon steel (typically zinc plated or hot-dip galvanized), hardened or case-hardened steel where wear matters, and stainless steel A2 (304) or A4 (316) for corrosion resistance. Specify the material, hardness where relevant, and the surface finish appropriate to your application and environment.
Specification Guides
Each size, material and standard of Wire Nails has its own reference page with the figures for that one configuration.
Goes With
Hardware commonly specified alongside Wire Nails.
Pricing
Wire Nails are supplied to order. Pricing starts from approximately US$0.005 per piece for standard sizes in carbon steel; final pricing depends on size, material, finish and order quantity (MOQ applies). Submit your exact configuration with the quote form above.
Custom manufacturing · Made to drawing
Need a wire nails outside the standard range?
Dimensions, material, finish and form are specified from the drawing — a nail outside the standard range is a variation on existing tooling rather than a new design.
Minimum order from 2,000 pieces; samples within 7 days of drawing approval.
This part is cold-formed, threaded, heat-treated and finished in-house. The stages below are where its class and finish are actually decided.
01
Cold heading
Wire rod is drawn to size and cold-formed into blanks. Forming rather than cutting keeps the grain flow continuous around the head, which is where a bolt is most likely to fail.
Head dimensions and under-head radius checked at set-up and per shift.
02
Thread rolling
Threads are rolled between hardened dies rather than cut. Rolled threads are stronger in fatigue than cut threads and hold pitch and flank angle far more consistently across a batch.
Go / no-go ring gauges to ISO 965 tolerance class 6g.
03
Heat treatment
Quench-and-temper brings carbon and alloy steel to the property class ordered — 8.8, 10.9 or 12.9 — with the furnace charge tracked so a finished lot can be traced back to it.
Core hardness and tensile tested per lot to ISO 898-1.
04
Surface treatment
Zinc, zinc-nickel, hot-dip galvanizing, black oxide, phosphate and Dacromet, selected against the service environment rather than against the price list.
Coating thickness and neutral salt spray hours to ISO 9227.
