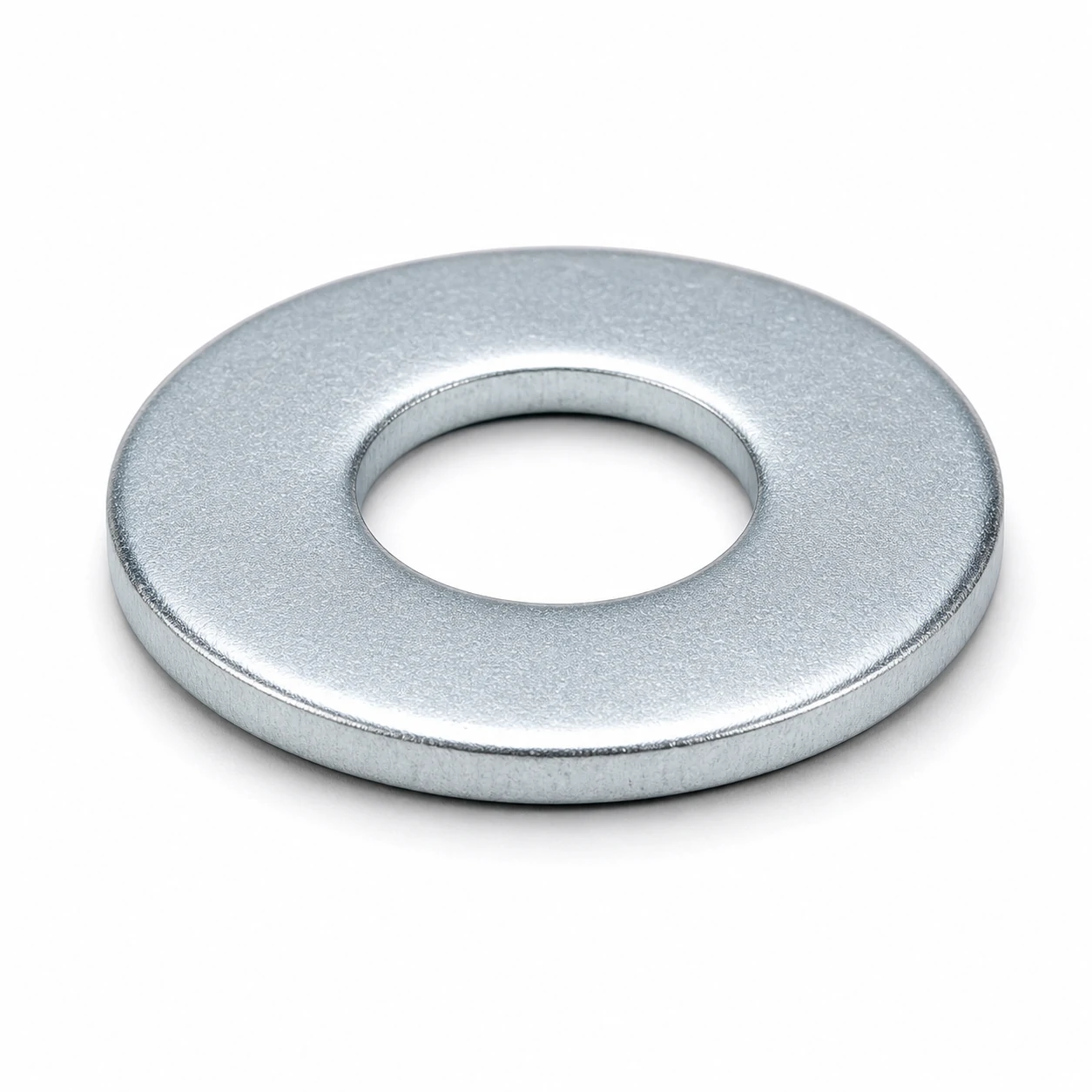

A2 Stainless Steel (ISO 3506 group A2 (304 / 1.4301), commonly supplied A2-70) is the most common stainless group for indoor and general outdoor fasteners. When general flat washer are specified in this grade, the dimensions remain per GB/T 97.1 / ISO 7089; the material determines corrosion behavior (good general corrosion resistance) and the service temperature range (approx. -200 °C to +400 °C, subject to the property class and the joint). Both are covered below with the size table.
Why Choose A2 Stainless Steel for General Flat Washer — GB/T 97.1 / ISO 7089 (Series 087)
The most common stainless group for indoor and general outdoor fasteners. For general flat washer — gb/t 97.1 / iso 7089 (series 087), this matters when good general corrosion resistance is the primary requirement.
Mechanical & Physical Properties
| Grade designation | ISO 3506 group A2 (304 / 1.4301), commonly supplied A2-70 |
|---|---|
| Magnetic response | Largely non-magnetic |
| Service temperature | approx. -200 °C to +400 °C, subject to the property class and the joint |
| Corrosion characteristic | Good general corrosion resistance |
Galvanic & Galling Considerations
For stainless general flat washer — gb/t 97.1 / iso 7089 (series 087) the compatibility question is galvanic rather than galling: joined to aluminum or galvanized steel in wet service, stainless drives corrosion of the less-noble metal. Isolate with a coating, sleeve or non-conductive washer where the joint sees moisture. Note also that stainless is softer than hardened carbon steel, so where the part carries a wear or shear duty, check the load against the grade before substituting.
Comparable Grades
For General Flat Washer — GB/T 97.1 / ISO 7089 (Series 087), the alternative stainless grade is A4 (316). Choose A2 (304) for general use and A4 (316) wherever chlorides are present; the molybdenum in A4 is the whole difference. Remember that stainless is the corrosion answer, not the strength answer — for load, look at class 8.8 or 10.9 instead.
Using Stainless Fasteners in Aluminum
The galvanic couple here runs the wrong way: aluminum is the less noble metal, so it corrodes and the fastener does not. What governs the rate is the ratio of areas — a large anode and a small cathode is a tolerable combination, the reverse concentrates the attack into thin material around the hole. An isolating washer plus sealant breaks the circuit; where that is impractical, match the fastener to the substrate.
Sizes of General Flat Washer — GB/T 97.1 / ISO 7089 (Series 087) Available in A2 Stainless Steel
| For bolt size | Inner diameter d1 (mm) | Outer diameter d2 (mm) | Thickness t (mm) | Reference standard |
|---|---|---|---|---|
| M3 | 3.2 | 7.0 | 0.5 | ISO 7089 / GB/T 97.1 |
| M4 | 4.3 | 9.0 | 0.8 | ISO 7089 / GB/T 97.1 |
| M5 | 5.3 | 10.0 | 1.0 | ISO 7089 / GB/T 97.1 |
| M6 | 6.4 | 12.0 | 1.6 | ISO 7089 / GB/T 97.1 |
| M8 | 8.4 | 16.0 | 1.6 | ISO 7089 / GB/T 97.1 |
| M10 | 10.5 | 20.0 | 2.0 | ISO 7089 / GB/T 97.1 |
| M12 | 13.0 | 24.0 | 2.5 | ISO 7089 / GB/T 97.1 |
| M14 | 15.0 | 28.0 | 2.5 | ISO 7089 / GB/T 97.1 |
| M16 | 17.0 | 30.0 | 3.0 | ISO 7089 / GB/T 97.1 |
| M18 | 19.0 | 34.0 | 3.0 | ISO 7089 / GB/T 97.1 |
| M20 | 21.0 | 37.0 | 3.0 | ISO 7089 / GB/T 97.1 |
| M24 | 25.0 | 44.0 | 4.0 | ISO 7089 / GB/T 97.1 |
| M30 | 31.0 | 56.0 | 4.0 | ISO 7089 / GB/T 97.1 |
| M36 | 37.0 | 66.0 | 5.0 | ISO 7089 / GB/T 97.1 |
Dimensions are independent of the material: every size above is available in A2 Stainless Steel.
Custom manufacturing · Made to drawing
Need this washer in a grade that is not listed?
A2 Stainless Steel is one of the grades the catalog describes. Bore and outside diameter are set by the joint rather than by the bolt, which is why an off-table size is so often the right answer. Made by stamping or punching.
Minimum order from 2,000 pieces; samples within 7 days of drawing approval.
