A2 Stainless Steel Stud / Threaded Rod are supplied to our own published dimensions — this is a trade-series article rather than one covered by a dimensional standard, so confirm the figures against the part you are replacing. The grade provides good general corrosion resistance and is largely non-magnetic; the practical service range is approx. -200 °C to +400 °C, subject to the property class and the joint.
Why Choose A2 Stainless Steel for Stud / Threaded Rod — ISO / DIN (Series 154)
The most common stainless group for indoor and general outdoor fasteners. For stud / threaded rod — iso / din (series 154), this matters when good general corrosion resistance is the primary requirement.
Mechanical & Physical Properties
| Grade designation | ISO 3506 group A2 (304 / 1.4301), commonly supplied A2-70 |
|---|---|
| Magnetic response | Largely non-magnetic |
| Service temperature | approx. -200 °C to +400 °C, subject to the property class and the joint |
| Corrosion characteristic | Good general corrosion resistance |
Galvanic & Galling Considerations
Two important notes for stainless stud / threaded rod — iso / din (series 154): (1) stainless can gall on stainless threads under load — use a thread lubricant or anti-galling compound, especially for M6 and below; (2) when joined to aluminum or galvanized steel, stainless can drive galvanic corrosion of the less-noble metal in wet service — isolate with a coating or sleeve where appropriate.
Comparable Grades
For Stud / Threaded Rod — ISO / DIN (Series 154), the alternative stainless grade is A4 (316). The practical dividing line is chlorides: A2 (304) is fine until salt is involved, and A4 (316) exists for the cases where it is — coastal, marine and road-salt service. Neither reaches the strength of a plated class 8.8 or 10.9 fastener.
Using Stainless Fasteners in Aluminum
Expect the aluminum to corrode, not the fastener — stainless sits higher in the galvanic series, so the aluminum is the one that gives up material. A small fastener in a thick section spreads the loss over a large area and is usually fine; a large fastener in thin sheet concentrates it and is not. Keep water out of the joint, or isolate the two metals with a nylon or coated washer and a sealant.

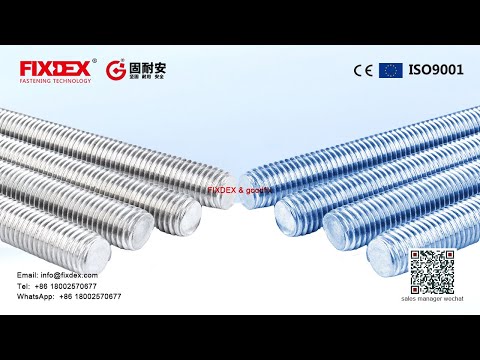

Sizes of Stud / Threaded Rod — ISO / DIN (Series 154) Available in A2 Stainless Steel
| Thread size | Pitch (mm) | Length L (mm) | Engagement depth bm (mm) | Material | Reference standard |
|---|---|---|---|---|---|
| M6 | 1.0 | 50 | 8 | Cl. 8.8 alloy steel | DIN 939 / GB/T 901 |
| M8 | 1.25 | 60 | 10 | Cl. 8.8 alloy steel | DIN 939 / GB/T 901 |
| M10 | 1.5 | 80 | 15 | Cl. 8.8 alloy steel | DIN 939 / GB/T 901 |
| M12 | 1.75 | 100 | 18 | Cl. 8.8 alloy steel | DIN 939 / GB/T 901 |
| M14 | 2.0 | 120 | 21 | Cl. 8.8 alloy steel | DIN 939 / GB/T 901 |
| M16 | 2.0 | 150 | 24 | Cl. 8.8 alloy steel | DIN 939 / GB/T 901 |
| M20 | 2.5 | 180 | 30 | Cl. 8.8 alloy steel | DIN 939 / GB/T 901 |
| M24 | 3.0 | 200 | 36 | Cl. 8.8 alloy steel | DIN 939 / GB/T 901 |
| M30 | 3.5 | 240 | 45 | Cl. 8.8 alloy steel | DIN 939 / GB/T 901 |
| M36 | 4.0 | 280 | 54 | Cl. 8.8 alloy steel | DIN 939 / GB/T 901 |
Dimensions are independent of the material: every size above is available in A2 Stainless Steel.
Custom manufacturing · Made to drawing
Need this bolt in a grade that is not listed?
A2 Stainless Steel is one of the grades the catalog describes. A non-standard bolt is quoted from the drawing; where one already exists in the catalog, the special is usually a variation on its tooling. Made by cold heading or hot forging.
Minimum order from 2,000 pieces; samples within 7 days of drawing approval.
