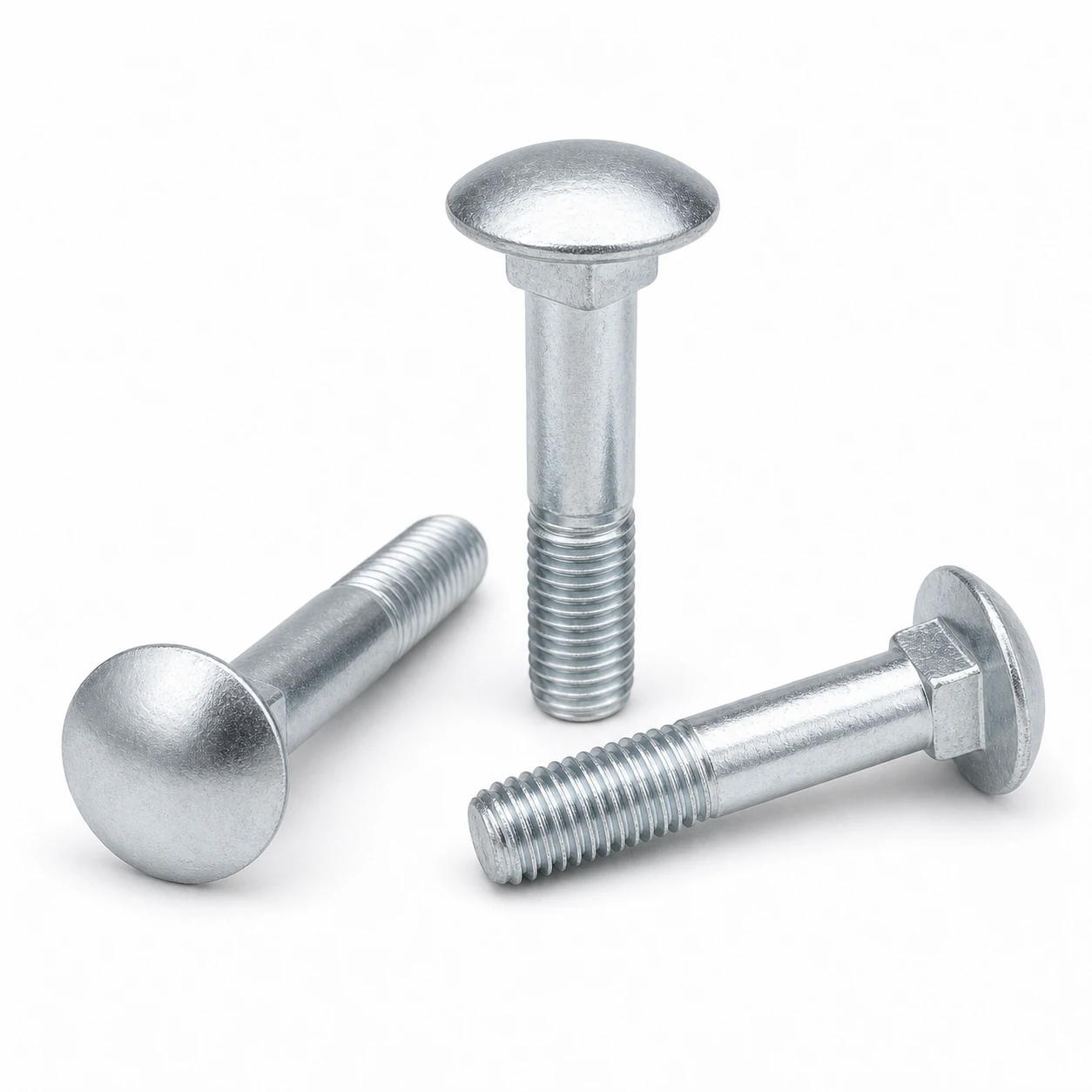

The M12 size of Carriage Bolts is dimensioned by DIN 603. The table below gives the dimensional row from the standard, followed by the installation notes for this type.
Values are taken from the governing standard rather than from a general machine-thread table, because this type is not selected on one.
M12 Dimensional Row (DIN 603)
| Size | Pitch (mm) | Head diameter dk (mm) | Head height k (mm) | Square neck width (mm) | Square neck depth (mm) | Common length range (mm) | Reference standard |
|---|---|---|---|---|---|---|---|
| M12 | 1.75 | 30.0 | 7.0 | 12.0 | 6.0 | 30~240 | DIN 603 / ISO 8677 |
Tightening Torque for M12
| Class 8.8 (dry, ~µ 0.125) | ≈ 84 Nm |
|---|---|
| Class 10.9 (dry, ~µ 0.125) | ≈ 124 Nm |
| Class 12.9 (dry, ~µ 0.125) | ≈ 145 Nm |
Indicative dry-joint values. Lubrication can lower the required torque by 15–25%. Always confirm against the joint design, especially when going up a strength class.
Proof Load & Strength for M12
| Tensile stress area As (ISO 724) | 84.3 mm² |
|---|---|
| Proof load, class 8.8 | 49 kN |
| Proof load, class 10.9 | 70 kN |
| Proof load, class 12.9 | 82 kN |
| Min. ultimate tensile load, class 8.8 | 67 kN |
Proof load = tensile stress area × the proof stress Sp of the class, per ISO 898-1 — Sp is a lower figure than the yield stress Rp0.2 and the two are not interchangeable. The stress area is computed from this size's own diameter and pitch, so a fine-pitch designation gives the fine-pitch figure. Design the joint so the working preload stays below the proof load of the class selected.
Mating Parts for M12
For M12, pair with a M12 hex nut (ISO 4032 / DIN 934) and, where used, a M12 flat washer (ISO 7089 / DIN 125A) under the head and under the nut.
When to Step Up or Down from M12
When the joint preload approaches the proof load of M12 class 8.8, step up to M16 class 8.8 (or move to M12 class 10.9). When the joint is over-specified, M10 often saves weight and cost without losing the safety margin.
