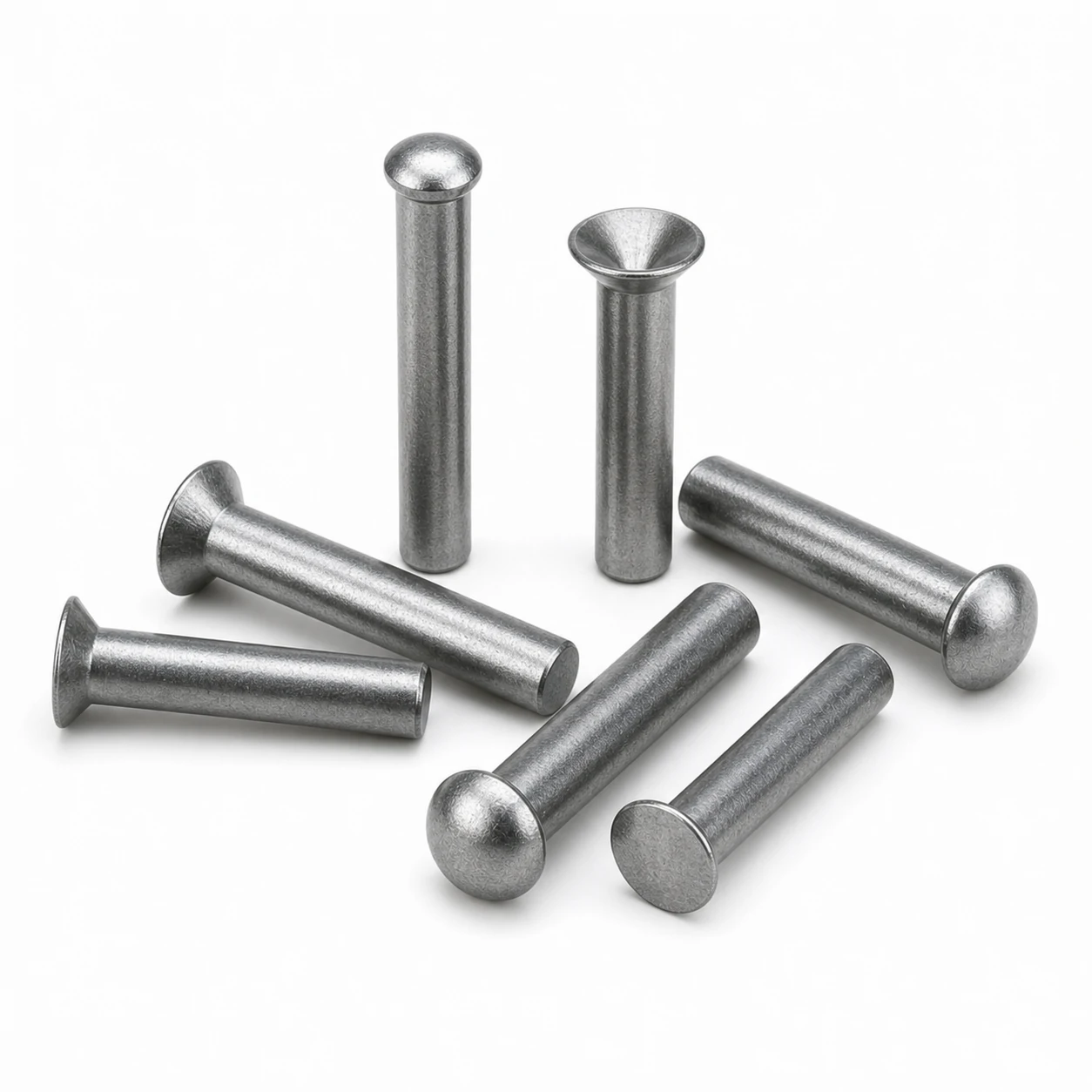

ISO 1051 is the international standard for solid rivets. This page sets out what the standard governs, the size range it specifies, and the related standards you will see referenced in datasheets.
ISO 1051 — Scope
ISO 1051 specifies the dimensions and tolerances of solid rivets. Material, property class, surface finish and packaging are governed by separate documents in the same standards family (for example ISO 898-1 for the mechanical property classes of bolts and screws).
Tolerance & Product Grades
ISO 1051, alongside the related ISO 1051 / DIN 660 / DIN 661 entries on this site, specifies product grades (typically A or B for fine work and C for general engineering) and tolerance classes for the controlling dimensions. Choose the grade against the precision your application requires.
Dimensions Specified by ISO 1051
| Nominal diameter (mm) | Common length range (mm) | Head diameter dk (mm) | Head height k (mm) | Countersunk head dia (mm) | Reference standard |
|---|---|---|---|---|---|
| 1.0 | 2~10 | 2.0 | 0.7 | 1.9 | ISO 1051 / DIN 660 (round) / DIN 661 (countersunk) |
| 1.2 | 2~12 | 2.4 | 0.8 | 2.2 | ISO 1051 / DIN 660 (round) / DIN 661 (countersunk) |
| 1.6 | 3~16 | 3.2 | 1.0 | 3.0 | ISO 1051 / DIN 660 (round) / DIN 661 (countersunk) |
| 2.0 | 3~20 | 4.0 | 1.3 | 3.8 | ISO 1051 / DIN 660 (round) / DIN 661 (countersunk) |
| 2.5 | 4~25 | 5.0 | 1.6 | 4.7 | ISO 1051 / DIN 660 (round) / DIN 661 (countersunk) |
| 3.0 | 4~30 | 6.0 | 1.9 | 5.6 | ISO 1051 / DIN 660 (round) / DIN 661 (countersunk) |
| 4.0 | 5~40 | 8.0 | 2.5 | 7.5 | ISO 1051 / DIN 660 (round) / DIN 661 (countersunk) |
| 5.0 | 6~50 | 10.0 | 3.1 | 9.4 | ISO 1051 / DIN 660 (round) / DIN 661 (countersunk) |
| 6.0 | 8~60 | 12.0 | 3.8 | 11.2 | ISO 1051 / DIN 660 (round) / DIN 661 (countersunk) |
| 8.0 | 10~80 | 16.0 | 5.0 | 15.0 | ISO 1051 / DIN 660 (round) / DIN 661 (countersunk) |
| 10.0 | 14~100 | 20.0 | 6.3 | 18.7 | ISO 1051 / DIN 660 (round) / DIN 661 (countersunk) |
| 12.0 | 16~120 | 24.0 | 7.5 | 22.5 | ISO 1051 / DIN 660 (round) / DIN 661 (countersunk) |
| 14.0 | 18~140 | 28.0 | 8.8 | 26.2 | ISO 1051 / DIN 660 (round) / DIN 661 (countersunk) |
| 16.0 | 20~160 | 32.0 | 10.0 | 30.0 | ISO 1051 / DIN 660 (round) / DIN 661 (countersunk) |
| 18.0 | 22~180 | 36.0 | 11.0 | 34.0 | ISO 1051 / DIN 660 (round) / DIN 661 (countersunk) |
| 20.0 | 25~200 | 40.0 | 12.5 | 37.5 | ISO 1051 / DIN 660 (round) / DIN 661 (countersunk) |
| 22.0 | 28~200 | 44.0 | 13.8 | 41.2 | ISO 1051 / DIN 660 (round) / DIN 661 (countersunk) |
| 25.0 | 32~200 | 50.0 | 15.6 | 47.0 | ISO 1051 / DIN 660 (round) / DIN 661 (countersunk) |
Companion Standards
ISO 1051 controls only the geometry of solid rivets. The mechanical strength is set by ISO 898-1 (bolts and screws) or ISO 898-2 (nuts); the surface finish is governed by separate finish standards (e.g. ISO 4042 for electroplating). For corrosion testing, the relevant document is ISO 9227 (neutral salt spray).
When to Specify ISO 1051
Choose ISO 1051 for international engineering work and OEM supply where ISO standards are the contractual reference. It is the default modern specification for solid rivets.
