Dowel Pins — Applications & Typical Uses

Dowel Pins are used primarily for precise location and light shear duty between two parts. This page summarizes where they fit, the industries that rely on them, and the practical points to get right when you specify them — to ISO 8734 / DIN 6325. Stocked across roughly M1 to M50, they cover general to heavy-duty work.

Typical Applications for Dowel Pins

The most common settings where these are specified:

  • Linkages & hinges: pivot points carrying light shear.

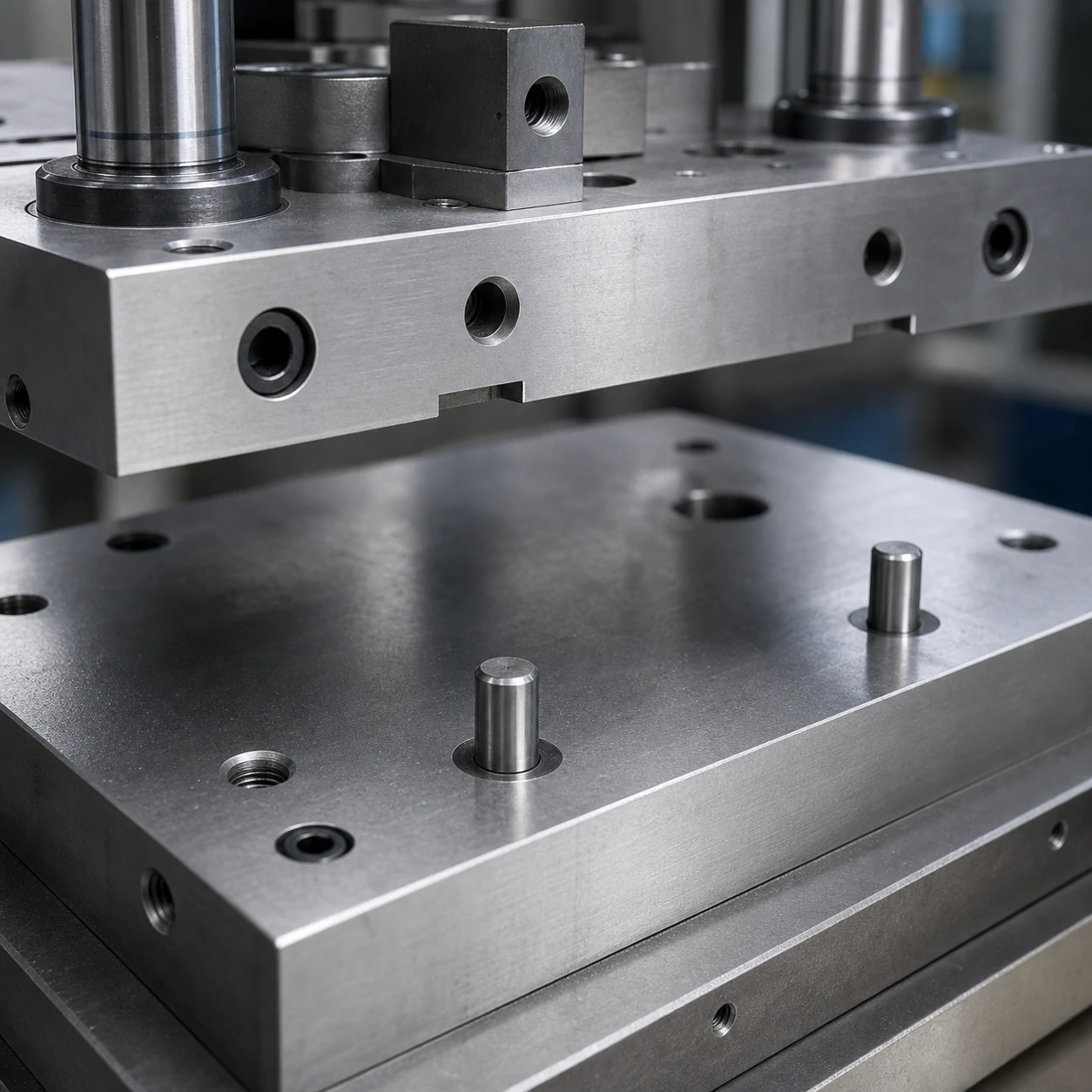

  • Machine alignment: dowelling mating housings so they reassemble in the same position.
  • General machine building: fastening covers, brackets, motors and sub-assemblies on production equipment.
  • Maintenance & repair (MRO): a stocked size for servicing existing plant where the original fastener spec must be matched.
  • Fabrication & metalwork: bench and on-site assembly of steel frames, enclosures and weldments.

How to Specify Dowel Pins for Your Application

  • Size: Match the nominal size to the mating thread or hole. This product spans M1–M50; check the full table below for the exact dimensions of each size.
  • Material: Choose the material and finish for the service environment — plated steel for general use, stainless for corrosion resistance.
  • Environment: For damp, coastal or chemical exposure prefer A4/316 stainless or a suitable coating; indoors, plated steel or A2 is usually sufficient.
  • Standard: This product is supplied to ISO 8734 / DIN 6325. Quoting the standard on your order guarantees interchangeable dimensions between suppliers.

Where Dowel Pins Are Not the Right Choice

Not for carrying significant tensile or repeated heavy shear loads — use a bolt or a keyed joint for that.

Technical Drawing

Customize the parameters below — every spec field is editable, and the drawing redraws to match the values you choose. Changing the size will snap the other fields to that size's standard values; you can then override any individual value.

Sends the selected values to the quote form below.

Request a Quote

Set the size and options in the drawing above, then send the exact configuration straight to this form.

Request a Quotation

Specification
Business Information

Dimensions & Specifications (ISO 8734 / DIN 6325)

Nominal diameter (mm)Diameter toleranceCommon length range (mm)MaterialHardnessReference standardNotes
1.0h64~10Alloy steelHardenedISO 8734 / DIN 6325Both ends chamfered, precision fit
1.2h64~12Alloy steelHardenedISO 8734 / DIN 6325Both ends chamfered, precision fit
1.5h64~16Alloy steelHardenedISO 8734 / DIN 6325Both ends chamfered, precision fit
2.0h66~20Alloy steelHardenedISO 8734 / DIN 6325Both ends chamfered, precision fit
2.5h66~24Alloy steelHardenedISO 8734 / DIN 6325Both ends chamfered, precision fit
3.0h68~30Alloy steelHardenedISO 8734 / DIN 6325Both ends chamfered, precision fit
4.0h68~40Alloy steelHardenedISO 8734 / DIN 6325Both ends chamfered, precision fit
5.0h610~50Alloy steelHardenedISO 8734 / DIN 6325Both ends chamfered, precision fit
6.0h612~60Alloy steelHardenedISO 8734 / DIN 6325Both ends chamfered, precision fit
8.0h616~80Alloy steelHardenedISO 8734 / DIN 6325Both ends chamfered, precision fit
10.0h620~100Alloy steelHardenedISO 8734 / DIN 6325Both ends chamfered, precision fit
12.0h625~120Alloy steelHardenedISO 8734 / DIN 6325Both ends chamfered, precision fit
16.0h630~160Alloy steelHardenedISO 8734 / DIN 6325Both ends chamfered, precision fit
20.0h635~200Alloy steelHardenedISO 8734 / DIN 6325Both ends chamfered, precision fit
25.0h645~200Alloy steelHardenedISO 8734 / DIN 6325Both ends chamfered, precision fit
30.0h650~200Alloy steelHardenedISO 8734 / DIN 6325Both ends chamfered, precision fit
40.0h660~200Alloy steelHardenedISO 8734 / DIN 6325Both ends chamfered, precision fit
50.0h680~200Alloy steelHardenedISO 8734 / DIN 6325Both ends chamfered, precision fit
