What Are Phillips Countersunk Screws Used For?

Typical applications, the industries that specify phillips countersunk screws, and how to choose the right size, material and finish for the joint.

Phillips Countersunk Screws are used for threaded assemblies where the head drive and seating style matter. They are manufactured to ISO 7046 / DIN 965, and the choice of size, property class and finish is driven by the load in the joint and the environment it sits in.

Primary duty
Threaded assemblies where the head drive and seating style matter
Governing standard
ISO 7046 / DIN 965
Thread size range
M1.6 to M10
Category
Screws

Application notes are general engineering guidance. Verify the property class and any approval requirement against your own design calculation.

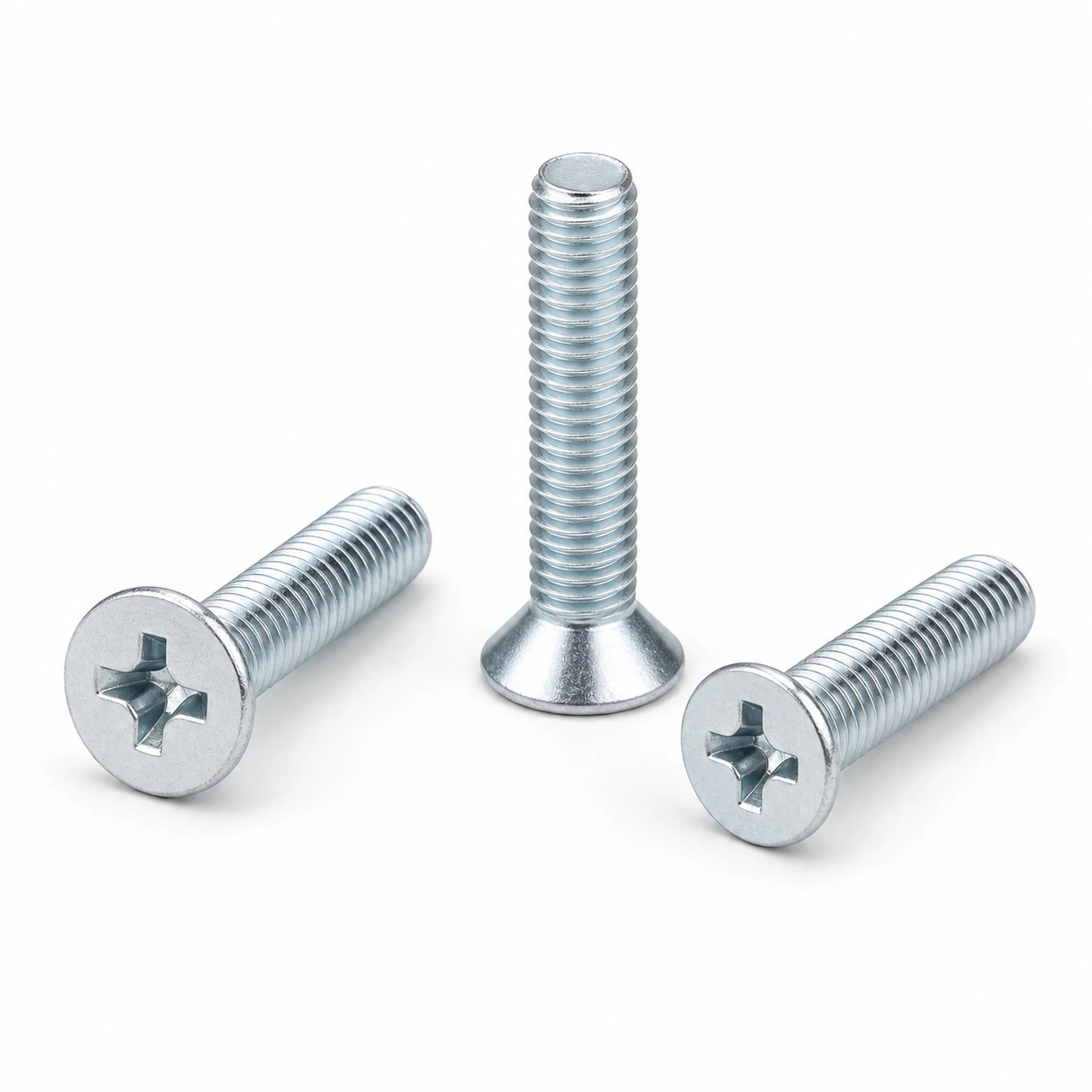

What Are Phillips Countersunk Screws Used For? application image

Phillips Countersunk Screws are used primarily for threaded assemblies where the head drive and seating style matter. This page lists the industries and assemblies where they are specified, the selection criteria that matter for each application, installation practice, and the cases where a different fastener type is the correct choice. Parts are supplied to ISO 7046 / DIN 965. Stocked across roughly M1.6 to M10, they cover general to heavy-duty work.

Typical Applications for Phillips Countersunk Screws

The most common settings where these are specified:

  • Appliances & consumer goods: high-volume assembly with power tools and consistent seating.
  • Machine guarding & panels: removable access covers that are opened for service.
  • General machine building: fastening covers, brackets, motors and sub-assemblies on production equipment.
  • Maintenance & repair (MRO): a stocked size for servicing existing plant where the original fastener spec must be matched.
  • Fabrication & metalwork: bench and on-site assembly of steel frames, enclosures and weldments.

How to Specify Phillips Countersunk Screws for Your Application

  • Size: Match the nominal size to the mating thread or hole. This product spans M1.6–M10; check the full table below for the exact dimensions of each size.
  • Drive & head: Pick the drive (socket, cross, slot) and head style for the tool access and seating surface; a recessed drive resists cam-out under power tools.
  • Environment: For damp, coastal or chemical exposure prefer A4/316 stainless or a suitable coating; indoors, plated steel or A2 is usually sufficient.
  • Standard: This product is supplied to ISO 7046 / DIN 965. Quoting the standard on your order guarantees interchangeable dimensions between suppliers.

Installation & Assembly Practice

  • Match the driver exactly to the recess (PH ≠ PZ; hex key sizes per ISO 2936) and keep the tool axial — side load is the main cause of stripped drives.
  • In tapped holes, engage a thread length of at least 1× the nominal diameter in steel, 2× in aluminum.
  • Set power tools to a torque that seats the head without embedding it into the mating surface.

Common Selection Mistakes with Phillips Countersunk Screws

  • Under-sizing the drive for the installation torque — a small recess at high torque strips before the screw is seated.
  • Using a countersunk head in thin sheet where the countersink removes most of the load-bearing material.
  • Specifying stainless in high-strength duty: A2-70 is roughly class 7 steel, not a 10.9 substitute.

Where Phillips Countersunk Screws Are Not the Right Choice

Not for high-preload structural joints (use a property-class bolt and nut), and not in thin sheet where a self-drilling or self-tapping type suits better.

Technical Drawing

Customize the parameters below — every spec field is editable, and the drawing redraws to match the values you choose. Changing the size will snap the other fields to that size's standard values; you can then override any individual value.

Sends the selected values to the quote form below.

Request a Quote

The form below follows the current technical drawing configuration. Change the drawing values above and the request details update automatically.

Request a Quotation

Specification
Business Information

Dimensions & Specifications (ISO 7046 / DIN 965)

SizePitch (mm)Head diameter dk (mm)Head height k (mm)Cross recessCountersink angle (deg)Reference standard
M1.60.353.00.96PH090ISO 7046 / DIN 965
M20.43.81.2PH190ISO 7046 / DIN 965
M2.50.454.71.5PH190ISO 7046 / DIN 965
M30.55.61.65PH190ISO 7046 / DIN 965
M3.50.66.51.93PH290ISO 7046 / DIN 965
M40.77.52.2PH290ISO 7046 / DIN 965
M50.89.22.5PH290ISO 7046 / DIN 965
M61.011.03.0PH390ISO 7046 / DIN 965
M81.2514.54.0PH390ISO 7046 / DIN 965
M101.518.05.0PH490ISO 7046 / DIN 965
