29 catalogued sizes, dimensioned to ISO 2936. Pick any row and the technical drawing redraws to it.
Hex Keys (Allen Keys) to ISO 2936: the full dimensional table is reproduced below. 29 sizes are held in the table below, and the technical drawing redraws to whichever row you select.
Standard
ISO 2936
Catalogued sizes
29
Dimensions are nominal values from the governing standard. Confirm the tolerance class for your application before ordering.
Customize the parameters below — every spec field is editable, and the drawing redraws to match the values you choose. Changing the size will snap the other fields to that size's standard values; you can then override any individual value.
Dimensioned line drawing of 0.7 Hex Keys (Allen Keys) to ISO 2936. Side view and top view, drawn to the dimensions in the table below and redrawn for any size selected.
Common bolt sizes
M1
Short leg (mm)
28
Long leg (mm)
51
Sends the selected values to the quote form below.
Request a Quotation for Hex Keys (Allen Keys)
The form below follows the current technical drawing configuration. Change the drawing values above and the request details update automatically.
Dimensions & Specifications (ISO 2936)
Every row below is a starting point for the customizer above — pick any size and the drawing will redraw to that row.
Wrench size s (mm)
Common bolt sizes
Short leg (mm)
Long leg (mm)
Reference standard
0.7
M1
28
51
ISO 2936 / DIN 911
0.9
M1.1
28
56
ISO 2936 / DIN 911
1.0
M1.2
32
56
ISO 2936 / DIN 911
1.3
M1.6
36
63
ISO 2936 / DIN 911
1.5
M2
40
71
ISO 2936 / DIN 911
2.0
M2.5
50
90
ISO 2936 / DIN 911
2.5
M3
56
100
ISO 2936 / DIN 911
3.0
M4
63
112
ISO 2936 / DIN 911
4.0
M5
71
125
ISO 2936 / DIN 911
5.0
M6
80
140
ISO 2936 / DIN 911
6.0
M8
90
160
ISO 2936 / DIN 911
7.0
---
100
180
ISO 2936 / DIN 911
8.0
M10
112
200
ISO 2936 / DIN 911
9.0
---
112
200
ISO 2936 / DIN 911
10.0
M12
125
224
ISO 2936 / DIN 911
12.0
M14
140
250
ISO 2936 / DIN 911
14.0
M16
160
280
ISO 2936 / DIN 911
17.0
M20
180
315
ISO 2936 / DIN 911
19.0
M22
200
355
ISO 2936 / DIN 911
22.0
M24
224
400
ISO 2936 / DIN 911
24.0
M27
250
450
ISO 2936 / DIN 911
27.0
M30
280
500
ISO 2936 / DIN 911
32.0
M36
315
560
ISO 2936 / DIN 911
36.0
M42
355
630
ISO 2936 / DIN 911
41.0
M48
400
710
ISO 2936 / DIN 911
46.0
---
450
800
ISO 2936 / DIN 911
50.0
---
500
900
ISO 2936 / DIN 911
55.0
---
500
900
ISO 2936 / DIN 911
60.0
---
560
1000
ISO 2936 / DIN 911
Hex Keys (Allen Keys) (ISO 2936) are a type of tools used across industrial assembly. Below is the complete size table together with material, standard and application guidance.

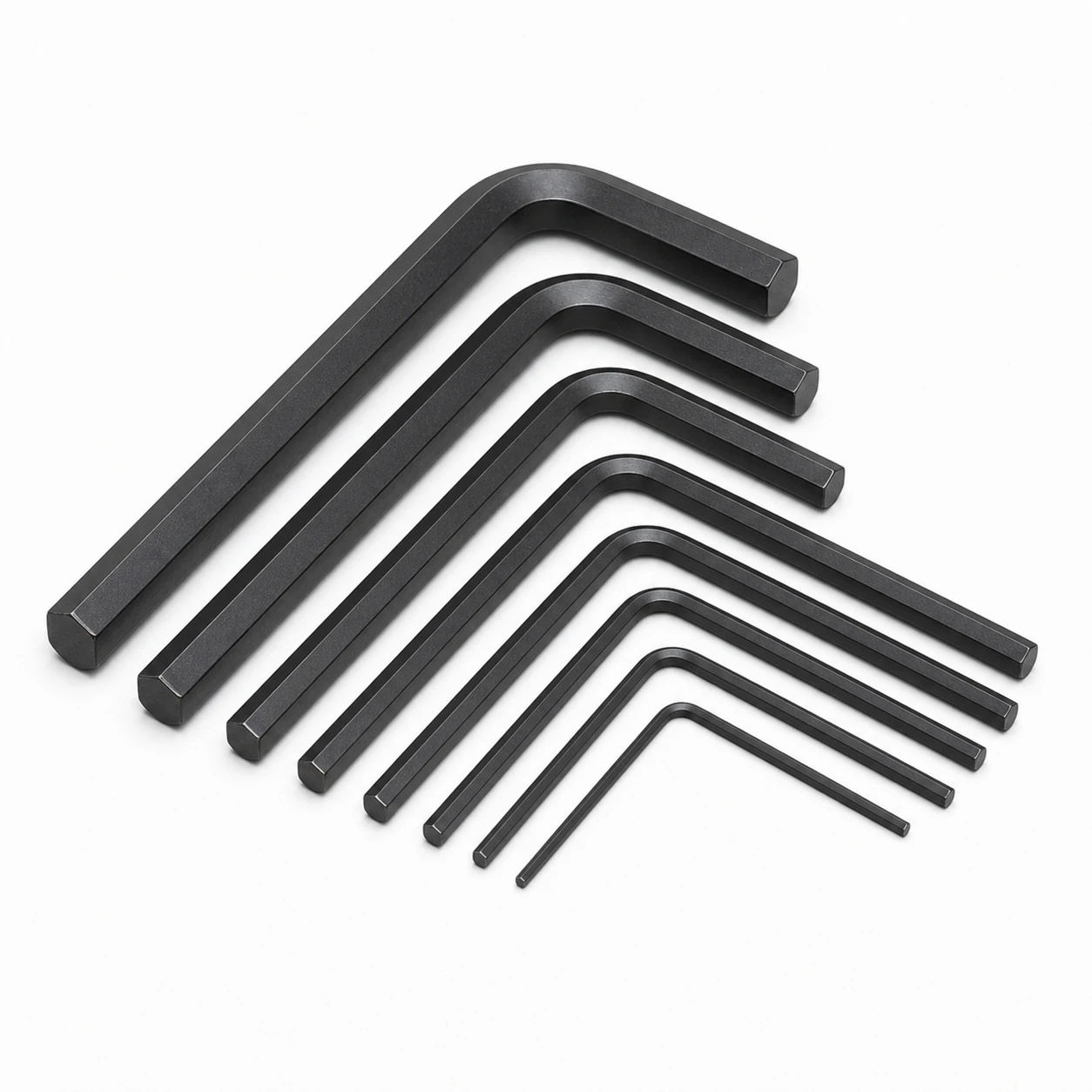

What Are Hex Keys (Allen Keys)?
Hex Keys (Allen Keys) are tools defined by ISO 2936. They are selected by nominal size and the dimensional characteristics shown below, and are available in a range of materials and finishes to suit the application and environment.
Materials & Finishes
Common materials include carbon steel (typically zinc plated or hot-dip galvanized), hardened or case-hardened steel where wear matters, and stainless steel A2 (304) or A4 (316) for corrosion resistance. Specify the material, hardness where relevant, and the surface finish appropriate to your application and environment.
Specification Guides
Each size, material and standard of Hex Keys (Allen Keys) has its own reference page with the figures for that one configuration.
Hex Keys (Allen Keys) are supplied to order. Pricing starts from approximately US$0.10 per piece for standard sizes in the catalog specification; final pricing depends on size, material, finish and order quantity (MOQ applies). Submit your exact configuration with the quote form above.
Custom manufacturing · Made to drawing
Need a hex keys (allen keys) outside the standard range?
A non-standard fastener tool is quoted from the drawing; where one already exists in the catalog, the special is usually a variation on its tooling.
Minimum order from 2,000 pieces; samples within 7 days of drawing approval.
This part is cold-formed, threaded, heat-treated and finished in-house. The stages below are where its class and finish are actually decided.
01
Cold heading
Wire rod is drawn to size and cold-formed into blanks. Forming rather than cutting keeps the grain flow continuous around the head, which is where a bolt is most likely to fail.
Head dimensions and under-head radius checked at set-up and per shift.
02
Thread rolling
Threads are rolled between hardened dies rather than cut. Rolled threads are stronger in fatigue than cut threads and hold pitch and flank angle far more consistently across a batch.
Go / no-go ring gauges to ISO 965 tolerance class 6g.
03
Heat treatment
Quench-and-temper brings carbon and alloy steel to the property class ordered — 8.8, 10.9 or 12.9 — with the furnace charge tracked so a finished lot can be traced back to it.
Core hardness and tensile tested per lot to ISO 898-1.
04
Surface treatment
Zinc, zinc-nickel, hot-dip galvanizing, black oxide, phosphate and Dacromet, selected against the service environment rather than against the price list.
Coating thickness and neutral salt spray hours to ISO 9227.
Third-party video, selected automatically for this topic. It is not produced by Engineering Hardware and is not a specification source — use the tables on this page for dimensional data.
Frequently Asked Questions
What is the controlling standard for Hex Keys (Allen Keys)?
Hex Keys (Allen Keys) are manufactured to ISO 2936. The dimensional values on this page follow that standard.
Which sizes of Hex Keys (Allen Keys) does Engineering Hardware supply?
The table on this page lists 29 sizes for Hex Keys (Allen Keys), ranging from 0.7 to 60.0. Sizes outside the table can be quoted on request.
In which materials are Hex Keys (Allen Keys) supplied?
Hex Keys (Allen Keys) are supplied in chrome-vanadium steel, with finishes including zinc plating, hot-dip galvanizing and black oxide. Choose material and finish to suit the load and the service environment for Hex Keys (Allen Keys).
How do I request a quotation?
Use the parametric drawing on this page to set the exact configuration (size, material, finish) and click "Request this configuration" — a specialist from Engineering Hardware will respond within one business day.
