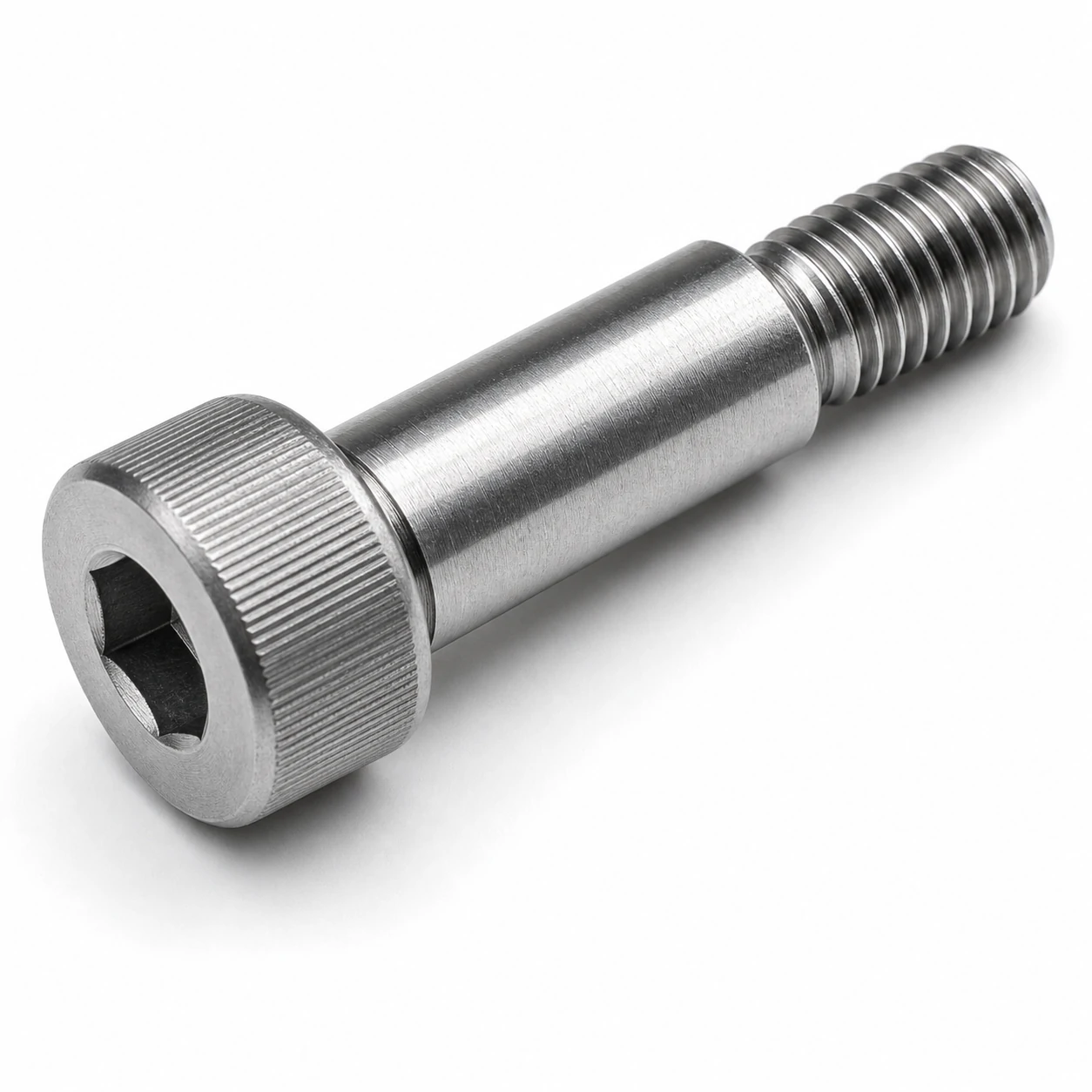

Shoulder Bolts to ISO 7379. Full dimensional table, materials, finishes and quotation. 10 sizes listed.
Technical Drawing
Customize the parameters below — every spec field is editable, and the drawing redraws to match the values you choose. Changing the size will snap the other fields to that size's standard values; you can then override any individual value.
Sends the selected values to the quote form below.
Request a Quotation for Shoulder Bolts
Tell us the size, material, finish and quantity you need for Shoulder Bolts (ISO 7379) and our team will respond within one business day. Click "Request this configuration" on the drawing above to send the parameters you just chose straight into this form.
Dimensions & Specifications (ISO 7379)
Every row below is a starting point for the customizer above — pick any size and the drawing will redraw to that row.
Shoulder diameter (mm)
Thread size
Pitch (mm)
Shoulder length range (mm)
Head diameter dk (mm)
Head height k (mm)
Reference standard
4.0
M3
0.5
8~50
8.0
4.3
ISO 7379 / DIN 9841
5.0
M4
0.7
8~63
9.5
5.3
ISO 7379 / DIN 9841
6.0
M5
0.8
10~63
11.0
6.5
ISO 7379 / DIN 9841
8.0
M6
1.0
10~80
13.0
8.0
ISO 7379 / DIN 9841
10.0
M8
1.25
12~100
16.0
10.0
ISO 7379 / DIN 9841
12.0
M10
1.5
16~100
18.0
12.0
ISO 7379 / DIN 9841
16.0
M12
1.75
20~125
24.0
16.0
ISO 7379 / DIN 9841
20.0
M16
2.0
25~160
30.0
20.0
ISO 7379 / DIN 9841
25.0
M20
2.5
32~200
36.0
25.0
ISO 7379 / DIN 9841
30.0
M24
3.0
40~200
45.0
30.0
ISO 7379 / DIN 9841
Shoulder Bolts are bolts manufactured to ISO 7379. This page lists the full dimensional range with the key specifications engineers need to select and specify them.
What Are Shoulder Bolts?
Shoulder Bolts are bolts defined by ISO 7379. They are selected by thread size and the dimensional characteristics shown below, and are available in a range of materials and finishes to suit the application and environment.
Materials & Finishes
Common materials include carbon steel (typically zinc plated or hot-dip galvanized), alloy steel in property classes 8.8, 10.9 and 12.9, and stainless steel A2 (304) or A4 (316) for corrosion resistance. Specify the material, property class and surface finish appropriate to your load and environment.
Shoulder Bolts are stocked and supplied to order. Pricing starts from approximately US$0.35 per piece for standard sizes in carbon steel; final pricing depends on size, material, finish and order quantity (MOQ applies). Submit your exact configuration with the quote form above.
