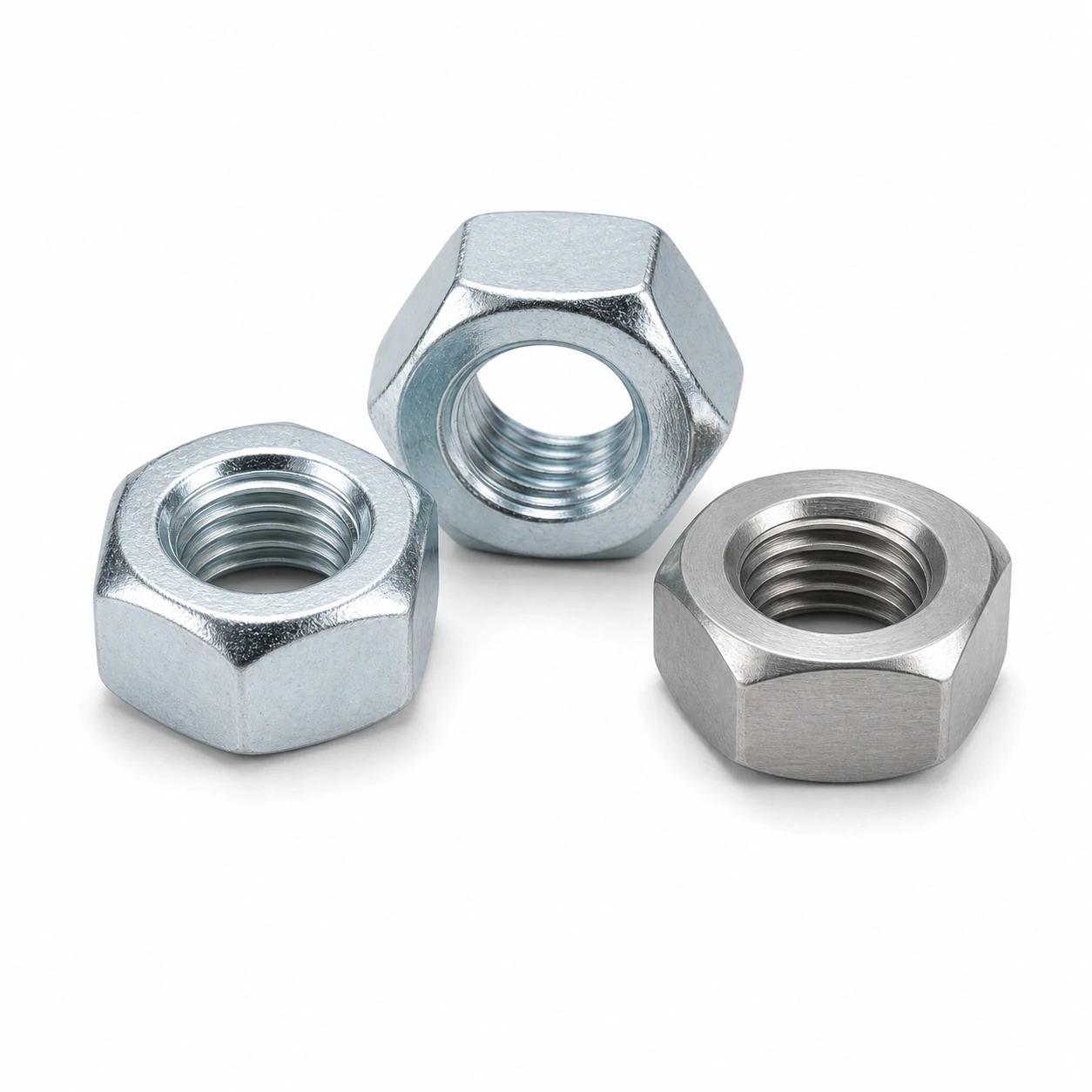

Hex Nuts, Grade C conform to ISO 4034. As nuts, they are specified by the dimensions in the table below; this page also covers materials, finishes and typical uses.
What Are Hex Nuts, Grade C?
Hex Nuts, Grade C are nuts defined by ISO 4034. They are selected by thread size and the dimensional characteristics shown below, and are available in a range of materials and finishes to suit the application and environment.
Dimensions & Specifications (ISO 4034)
| Size | Pitch (mm) | Width across flats s (mm) | Width across corners e min (mm) | Nut height m (mm) | Product grade | Reference standard |
|---|---|---|---|---|---|---|
| M5 | 0.8 | 8.0 | 8.63 | 4.7 | Grade C | ISO 4034 / DIN 555 |
| M6 | 1.0 | 10.0 | 10.89 | 5.2 | Grade C | ISO 4034 / DIN 555 |
| M8 | 1.25 | 13.0 | 14.2 | 6.8 | Grade C | ISO 4034 / DIN 555 |
| M10 | 1.5 | 17.0 | 18.72 | 8.4 | Grade C | ISO 4034 / DIN 555 |
| M12 | 1.75 | 19.0 | 20.88 | 10.8 | Grade C | ISO 4034 / DIN 555 |
| M14 | 2.0 | 22.0 | 24.49 | 12.8 | Grade C | ISO 4034 / DIN 555 |
| M16 | 2.0 | 24.0 | 26.75 | 14.8 | Grade C | ISO 4034 / DIN 555 |
| M18 | 2.5 | 27.0 | 29.56 | 15.8 | Grade C | ISO 4034 / DIN 555 |
| M20 | 2.5 | 30.0 | 33.53 | 18.0 | Grade C | ISO 4034 / DIN 555 |
| M22 | 2.5 | 32.0 | 35.72 | 19.4 | Grade C | ISO 4034 / DIN 555 |
| M24 | 3.0 | 36.0 | 39.55 | 21.5 | Grade C | ISO 4034 / DIN 555 |
| M27 | 3.0 | 41.0 | 45.2 | 23.8 | Grade C | ISO 4034 / DIN 555 |
| M30 | 3.5 | 46.0 | 50.85 | 25.6 | Grade C | ISO 4034 / DIN 555 |
| M36 | 4.0 | 55.0 | 60.79 | 31.0 | Grade C | ISO 4034 / DIN 555 |
| M42 | 4.5 | 65.0 | 71.3 | 34.0 | Grade C | ISO 4034 / DIN 555 |
| M48 | 5.0 | 75.0 | 82.6 | 38.0 | Grade C | ISO 4034 / DIN 555 |
Materials & Finishes
Common materials include carbon steel (typically zinc plated or hot-dip galvanized), alloy steel in property classes 8.8, 10.9 and 12.9, and stainless steel A2 (304) or A4 (316) for corrosion resistance. Specify the material, property class and surface finish appropriate to your load and environment.
Typical Applications
Paired with bolts and studs across machinery, structures and equipment; lock variants resist loosening under vibration.
Related Fasteners
Pricing
Hex Nuts, Grade C are stocked and supplied to order. Pricing starts from approximately US$0.020 per piece for standard sizes in carbon steel; final pricing depends on size, material, finish and order quantity (MOQ applies). Request a quotation below for your exact specification.
Request a Quotation for Hex Nuts, Grade C
Tell us the size, material, finish and quantity you need for Hex Nuts, Grade C (ISO 4034) and our team will respond within one business day.
