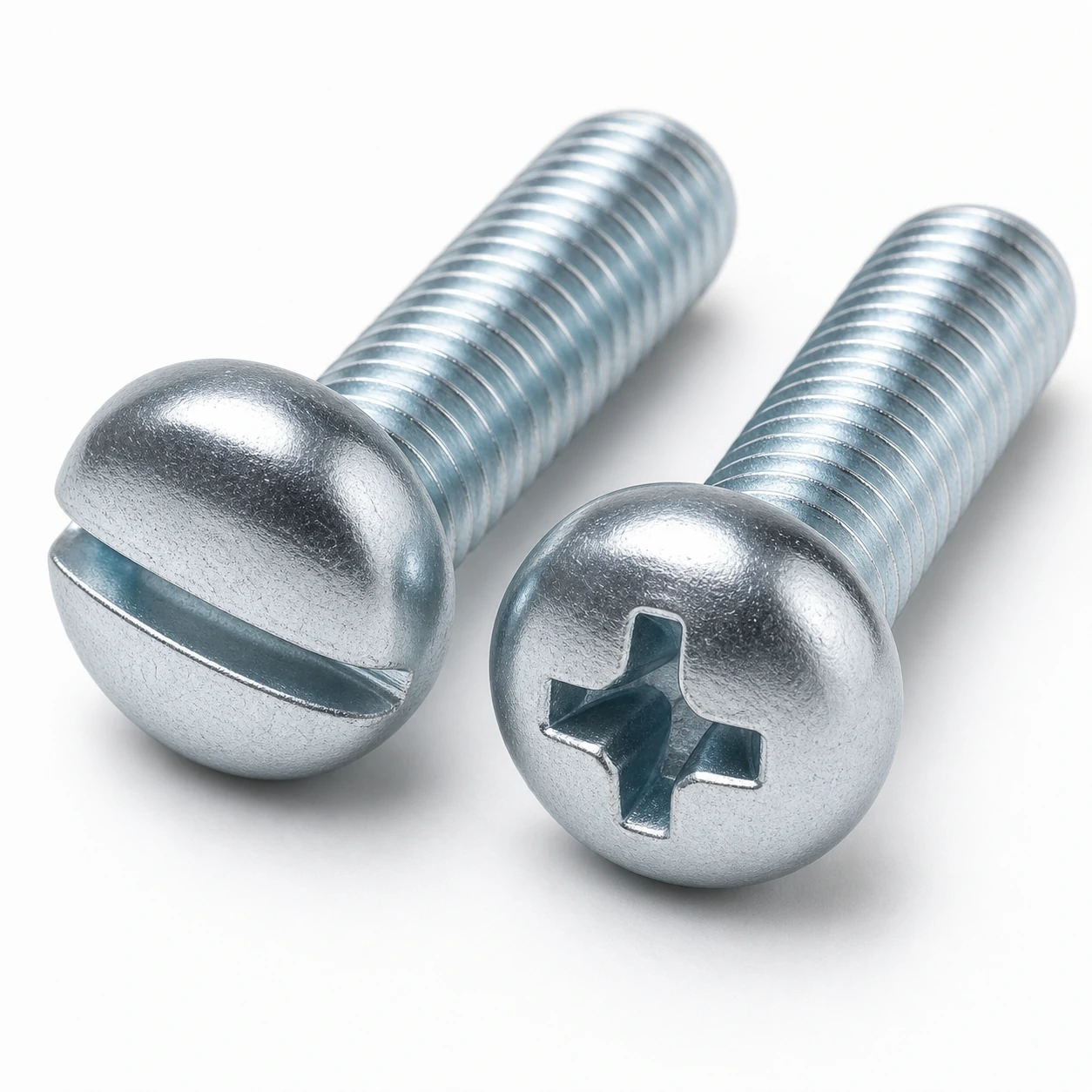

Pan Head Screws — ISO 1207 / ISO 7045 / DIN 7985

Pan Head Screws to ISO 1207 / ISO 7045 / DIN 7985. Full dimensional table, materials, finishes and quotation. 13 sizes listed.

Technical Drawing

Select a size to view the dimensioned line drawing. Annotations update automatically from the selected dimensions.

Pan Head Screws conform to ISO 1207 / ISO 7045 / DIN 7985. As screws, they are specified by the dimensions in the table below; this page also covers materials, finishes and typical uses.

What Are Pan Head Screws?

Pan Head Screws are screws defined by ISO 1207 / ISO 7045 / DIN 7985. They are selected by thread size and the dimensional characteristics shown below, and are available in a range of materials and finishes to suit the application and environment.

Dimensions & Specifications (ISO 1207 / ISO 7045 / DIN 7985)

Size Pitch (mm) Head diameter dk (mm) Head height k (mm) Cross recess Reference standard
M1 0.25 2.0 0.8 PH0 ISO 1207 / ISO 7045 / DIN 7985
M1.2 0.25 2.3 0.9 PH0 ISO 1207 / ISO 7045 / DIN 7985
M1.4 0.3 2.6 1.0 PH0 ISO 1207 / ISO 7045 / DIN 7985
M1.6 0.35 3.0 1.0 PH0 ISO 1207 / ISO 7045 / DIN 7985
M2 0.4 3.8 1.3 PH1 ISO 1207 / ISO 7045 / DIN 7985
M2.5 0.45 4.7 1.5 PH1 ISO 1207 / ISO 7045 / DIN 7985
M3 0.5 5.6 1.8 PH1 ISO 1207 / ISO 7045 / DIN 7985
M3.5 0.6 6.5 2.1 PH2 ISO 1207 / ISO 7045 / DIN 7985
M4 0.7 8.0 2.4 PH2 ISO 1207 / ISO 7045 / DIN 7985
M5 0.8 9.5 3.0 PH2 ISO 1207 / ISO 7045 / DIN 7985
M6 1.0 12.0 3.6 PH3 ISO 1207 / ISO 7045 / DIN 7985
M8 1.25 16.0 4.8 PH3 ISO 1207 / ISO 7045 / DIN 7985
M10 1.5 20.0 6.0 PH4 ISO 1207 / ISO 7045 / DIN 7985

Materials & Finishes

Common materials include carbon steel (typically zinc plated or hot-dip galvanized), alloy steel in property classes 8.8, 10.9 and 12.9, and stainless steel A2 (304) or A4 (316) for corrosion resistance. Specify the material, property class and surface finish appropriate to your load and environment.

Typical Applications

Machine assembly, tooling, enclosures and precision equipment where a clean, controllable drive and head form are needed.

Related Fasteners

Pricing

Pan Head Screws are stocked and supplied to order. Pricing starts from approximately US$0.030 per piece for standard sizes in carbon steel; final pricing depends on size, material, finish and order quantity (MOQ applies). Request a quotation below for your exact specification.

Request a Quotation for Pan Head Screws

Tell us the size, material, finish and quantity you need for Pan Head Screws (ISO 1207 / ISO 7045 / DIN 7985) and our team will respond within one business day.

Request a Quotation

Specification
Business Information

Frequently Asked Questions

What standard do Pan Head Screws conform to?

Pan Head Screws are manufactured to ISO 1207 / ISO 7045 / DIN 7985. The dimensional values on this page follow that standard.

What sizes are available for Pan Head Screws?

The table on this page lists 13 sizes, ranging from M1 to M10. Other sizes can be quoted on request.

What materials and finishes are Pan Head Screws available in?

Common options are carbon steel (zinc plated or hot-dip galvanized), alloy steel in property classes 8.8/10.9/12.9, and stainless steel A2 (304) or A4 (316). Specify material and finish to suit your load and environment.

How do I request a quote for Pan Head Screws?

Use the fastener finder on this page to set the size, material, finish and quantity, then submit the request. A specialist from engineeringhardware.com will reply within one business day.
