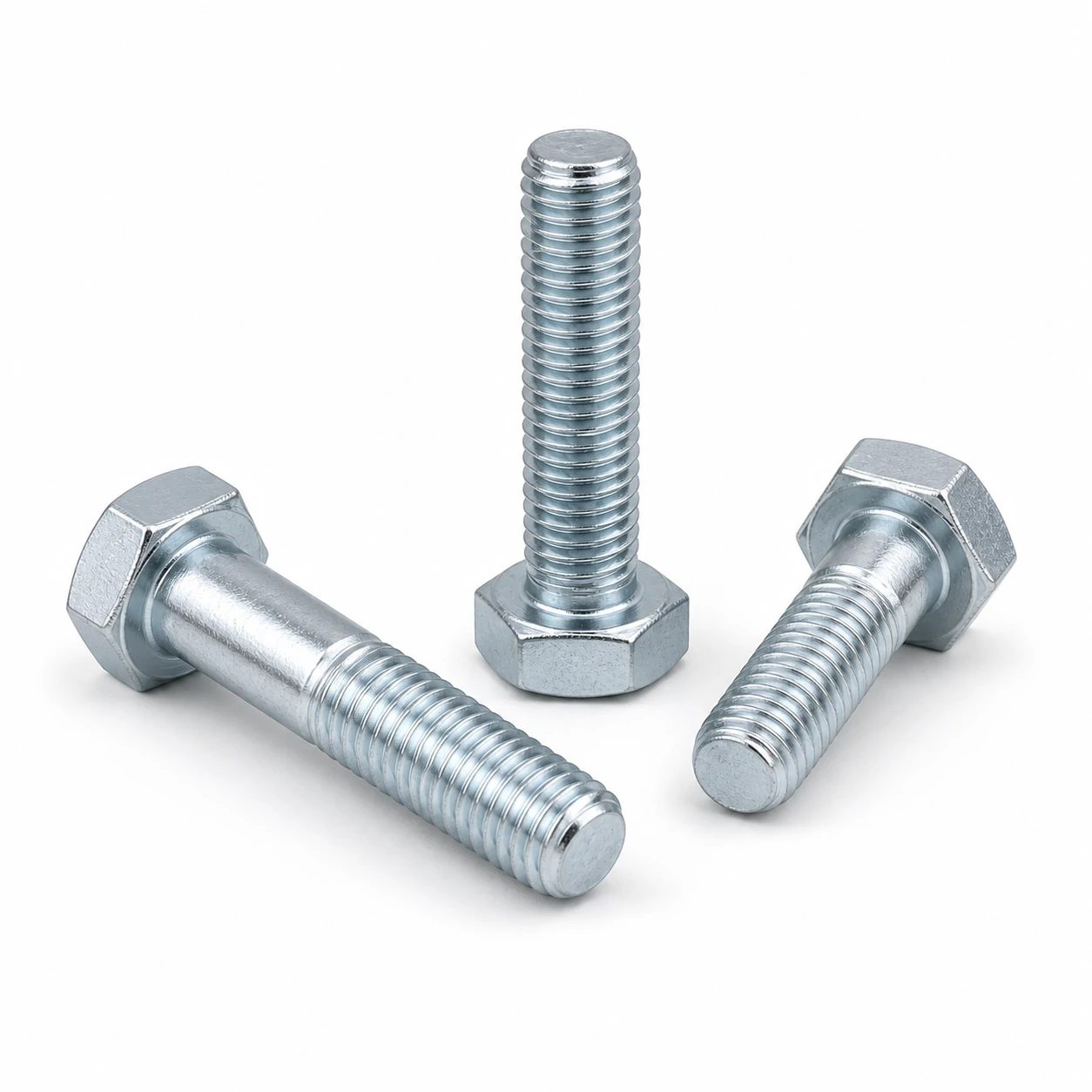

Hex Bolts, Grade C — ISO 4016

Hex Bolts, Grade C to ISO 4016. Full dimensional table, materials, finishes and quotation. 16 sizes listed.

Technical Drawing

Select a size to view the dimensioned line drawing. Annotations update automatically from the selected dimensions.

Hex Bolts, Grade C conform to ISO 4016. As bolts, they are specified by the dimensions in the table below; this page also covers materials, finishes and typical uses.

What Are Hex Bolts, Grade C?

Hex Bolts, Grade C are bolts defined by ISO 4016. They are selected by thread size and the dimensional characteristics shown below, and are available in a range of materials and finishes to suit the application and environment.

Dimensions & Specifications (ISO 4016)

Size Pitch (mm) Width across flats s (mm) Width across corners e min (mm) Head height k (mm) Product grade Reference standard
M5 0.8 8.0 8.63 3.35 Grade C ISO 4016 / DIN 601
M6 1.0 10.0 10.89 4.15 Grade C ISO 4016 / DIN 601
M8 1.25 13.0 14.2 5.45 Grade C ISO 4016 / DIN 601
M10 1.5 17.0 18.72 6.58 Grade C ISO 4016 / DIN 601
M12 1.75 19.0 20.88 7.68 Grade C ISO 4016 / DIN 601
M14 2.0 22.0 24.49 9.25 Grade C ISO 4016 / DIN 601
M16 2.0 24.0 26.75 10.18 Grade C ISO 4016 / DIN 601
M18 2.5 27.0 29.56 11.72 Grade C ISO 4016 / DIN 601
M20 2.5 30.0 33.53 12.72 Grade C ISO 4016 / DIN 601
M22 2.5 32.0 35.72 14.5 Grade C ISO 4016 / DIN 601
M24 3.0 36.0 39.55 15.35 Grade C ISO 4016 / DIN 601
M27 3.0 41.0 45.2 17.92 Grade C ISO 4016 / DIN 601
M30 3.5 46.0 50.85 19.75 Grade C ISO 4016 / DIN 601
M36 4.0 55.0 60.79 23.35 Grade C ISO 4016 / DIN 601
M42 4.5 65.0 71.3 27.05 Grade C ISO 4016 / DIN 601
M48 5.0 75.0 82.6 31.07 Grade C ISO 4016 / DIN 601

Materials & Finishes

Common materials include carbon steel (typically zinc plated or hot-dip galvanized), alloy steel in property classes 8.8, 10.9 and 12.9, and stainless steel A2 (304) or A4 (316) for corrosion resistance. Specify the material, property class and surface finish appropriate to your load and environment.

Typical Applications

Structural steelwork, machinery, automotive and general assembly where high-strength, removable joints are required.

Related Fasteners

Pricing

Hex Bolts, Grade C are stocked and supplied to order. Pricing starts from approximately US$0.060 per piece for standard sizes in carbon steel; final pricing depends on size, material, finish and order quantity (MOQ applies). Request a quotation below for your exact specification.

Request a Quotation for Hex Bolts, Grade C

Tell us the size, material, finish and quantity you need for Hex Bolts, Grade C (ISO 4016) and our team will respond within one business day.

Request a Quotation

Specification
Business Information

Frequently Asked Questions

What standard do Hex Bolts, Grade C conform to?

Hex Bolts, Grade C are manufactured to ISO 4016. The dimensional values on this page follow that standard.

What sizes are available for Hex Bolts, Grade C?

The table on this page lists 16 sizes, ranging from M5 to M48. Other sizes can be quoted on request.

What materials and finishes are Hex Bolts, Grade C available in?

Common options are carbon steel (zinc plated or hot-dip galvanized), alloy steel in property classes 8.8/10.9/12.9, and stainless steel A2 (304) or A4 (316). Specify material and finish to suit your load and environment.

How do I request a quote for Hex Bolts, Grade C?

Use the fastener finder on this page to set the size, material, finish and quantity, then submit the request. A specialist from engineeringhardware.com will reply within one business day.
