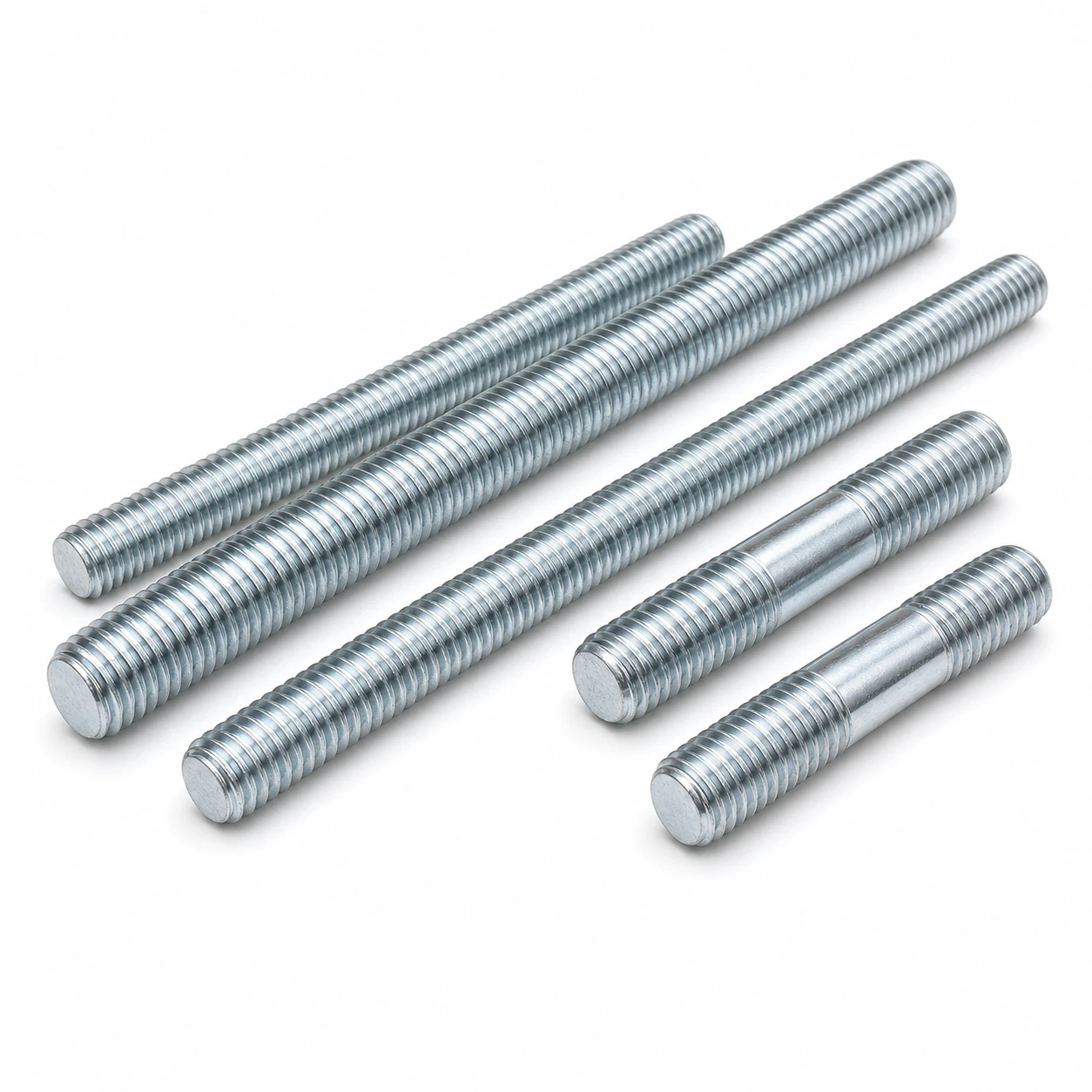

Studs & Threaded Rods (DIN 939 / DIN 975) are a type of bolts used across industrial assembly. Below is the complete size table together with material, standard and application guidance.
What Are Studs & Threaded Rods?
Studs & Threaded Rods are bolts defined by DIN 939 / DIN 975. They are selected by thread size and the dimensional characteristics shown below, and are available in a range of materials and finishes to suit the application and environment.
Dimensions & Specifications (DIN 939 / DIN 975)
| Thread size | Pitch (mm) | Point type | Common lengths (mm) | Reference standard | Notes |
|---|---|---|---|---|---|
| M4 | 0.7 | M4 | 10~100 | DIN 939 | Stud, equal thread both ends |
| M5 | 0.8 | M5 | 10~120 | DIN 939 | Stud, equal thread both ends |
| M6 | 1.0 | M6 | 12~160 | DIN 939 | Stud, equal thread both ends |
| M8 | 1.25 | M8 | 16~200 | DIN 939 | Stud, equal thread both ends |
| M10 | 1.5 | M10 | 20~250 | DIN 939 | Stud, equal thread both ends |
| M12 | 1.75 | M12 | 25~300 | DIN 939 | Stud, equal thread both ends |
| M14 | 2.0 | M14 | 30~300 | DIN 939 | Stud, equal thread both ends |
| M16 | 2.0 | M16 | 35~300 | DIN 939 | Stud, equal thread both ends |
| M18 | 2.5 | M18 | 40~300 | DIN 939 | Stud, equal thread both ends |
| M20 | 2.5 | M20 | 45~300 | DIN 939 | Stud, equal thread both ends |
| M22 | 2.5 | M22 | 50~300 | DIN 939 | Stud, equal thread both ends |
| M24 | 3.0 | M24 | 50~300 | DIN 939 | Stud, equal thread both ends |
| M27 | 3.0 | M27 | 55~300 | DIN 939 | Stud, equal thread both ends |
| M30 | 3.5 | M30 | 60~300 | DIN 939 | Stud, equal thread both ends |
| M36 | 4.0 | M36 | 70~300 | DIN 939 | Stud, equal thread both ends |
| M42 | 4.5 | M42 | 80~300 | DIN 940 | Stud, equal thread both ends |
| M48 | 5.0 | M48 | 90~300 | DIN 940 | Stud, equal thread both ends |
| M4 | 0.7 | Fully threaded | 1000/2000/3000 | DIN 975 | Fully threaded rod, cut to length |
| M5 | 0.8 | Fully threaded | 1000/2000/3000 | DIN 975 | Fully threaded rod, cut to length |
| M6 | 1.0 | Fully threaded | 1000/2000/3000 | DIN 975 | Fully threaded rod, cut to length |
| M8 | 1.25 | Fully threaded | 1000/2000/3000 | DIN 975 | Fully threaded rod, cut to length |
| M10 | 1.5 | Fully threaded | 1000/2000/3000 | DIN 975 | Fully threaded rod, cut to length |
| M12 | 1.75 | Fully threaded | 1000/2000/3000 | DIN 975 | Fully threaded rod, cut to length |
| M16 | 2.0 | Fully threaded | 1000/2000/3000 | DIN 975 | Fully threaded rod, cut to length |
| M20 | 2.5 | Fully threaded | 1000/2000/3000 | DIN 975 | Fully threaded rod, cut to length |
| M24 | 3.0 | Fully threaded | 1000/2000/3000 | DIN 975 | Fully threaded rod, cut to length |
| M30 | 3.5 | Fully threaded | 1000/2000/3000 | DIN 975 | Fully threaded rod, cut to length |
Materials & Finishes
Common materials include carbon steel (typically zinc plated or hot-dip galvanized), alloy steel in property classes 8.8, 10.9 and 12.9, and stainless steel A2 (304) or A4 (316) for corrosion resistance. Specify the material, property class and surface finish appropriate to your load and environment.
Typical Applications
Structural steelwork, machinery, automotive and general assembly where high-strength, removable joints are required.
Related Fasteners
Pricing
Studs & Threaded Rods are stocked and supplied to order. Pricing starts from approximately US$0.10 per piece for standard sizes in carbon steel; final pricing depends on size, material, finish and order quantity (MOQ applies). Request a quotation below for your exact specification.
